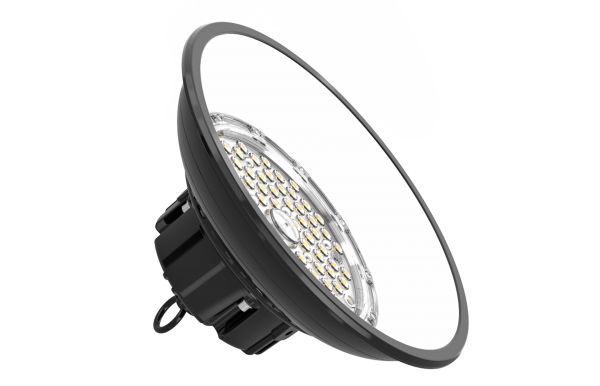

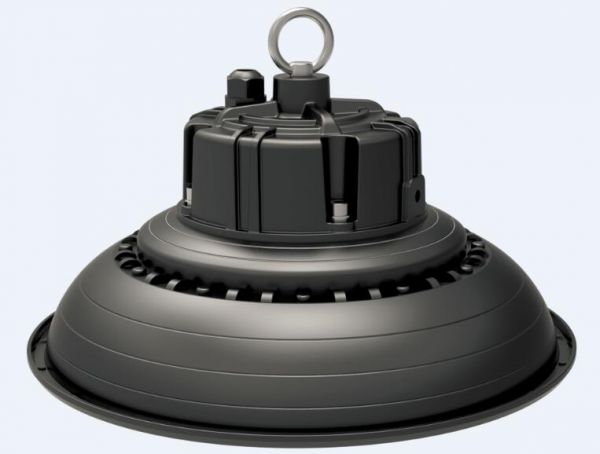

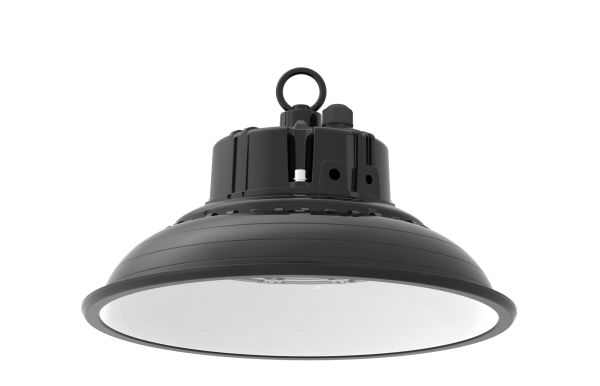

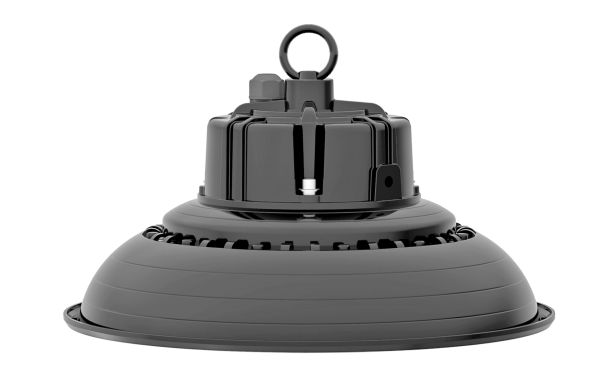

UFO HIGH BAY LIGHT - S SERIES

UFO HIGH BAY LIGHT - S SERIES

◆ Unique integrated design housing with lampshade
◆ Anti-glare, integrated design of housing, pure aluminum body

◆ Optical lens, an-ti UV; transmittance > 94%

◆ Professional light distribution : 60°/90°/110°


  • Parameters


    Model
    Power ±5%

    Voltage

    Frequency

    CCT

    Lumens

    ±10%

    LEDs typeBeam Angle
    VAHBL100W-S100W

    AC100-277V

    50/60Hz


    2700-

    6500K

    14000lm

    SMD2835

    Ra80

    110°/ 90° /

    60°

    VAHBL150W-S150W21000lm
    VAHBL200W-S200W28000lm




    Product Features



    1. Unique integrated design housing with lampshade
    2. Anti-glare, integrated design of housing, pure aluminum body

    3. Optical lens, an-ti UV; transmittance > 94%

    4.  Professional light distribution : 60°/90°/110°

    5. Adopt LED of high lighting effect, lighting effect of luminaire reaches up to 150LM/W.
    6. Meanwell / Sosen Drivers , 5 Years warranty
    7. High temperature series optional, applicable to special environment in temperature no more than 60ºC
    8. CRI>80, good color rendering performance.
    9. Can operate in -35ºC~+45ºC environment.

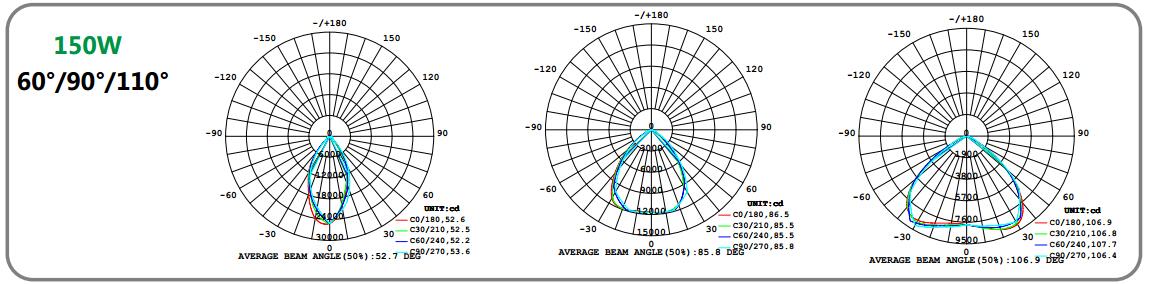

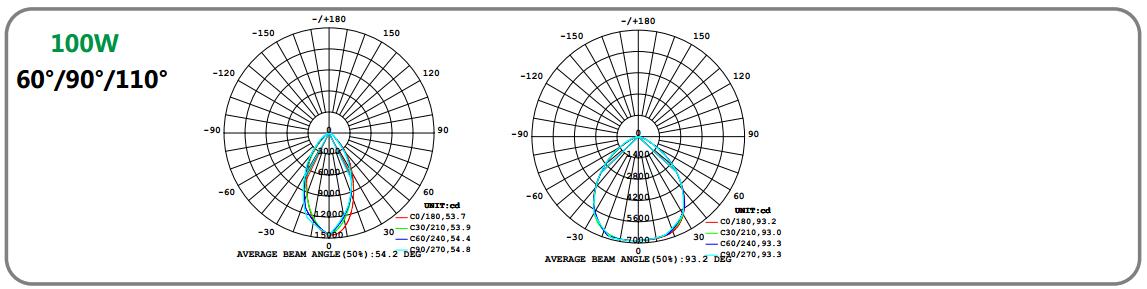

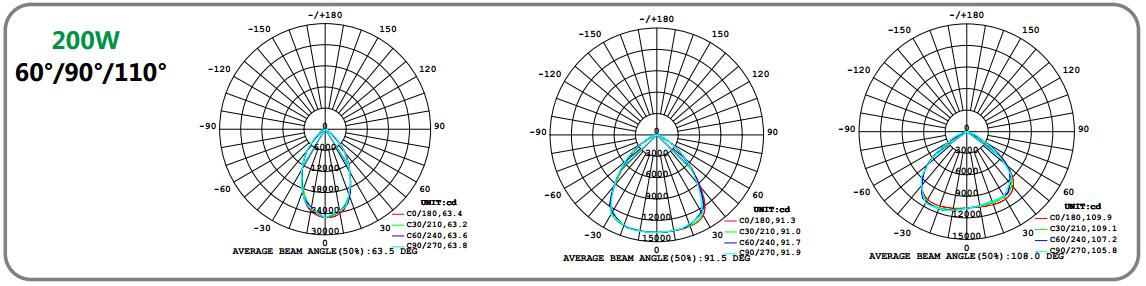

    Distribution Diagram

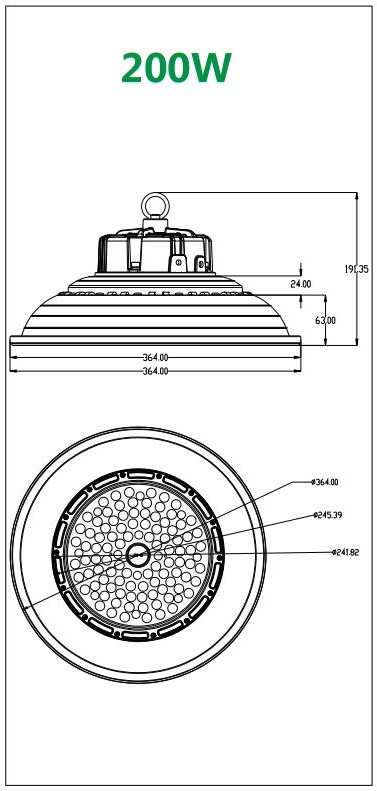

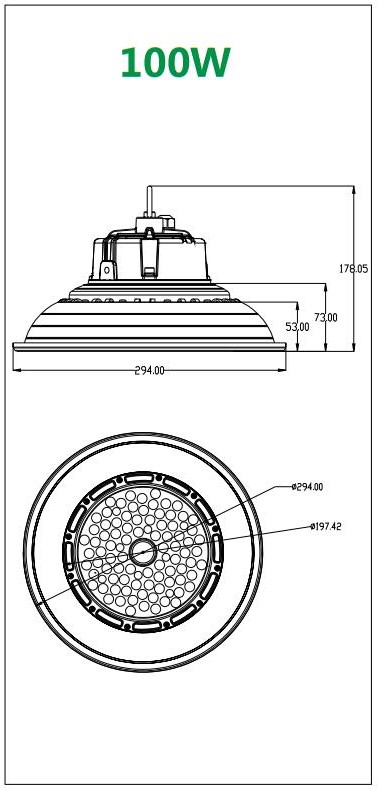

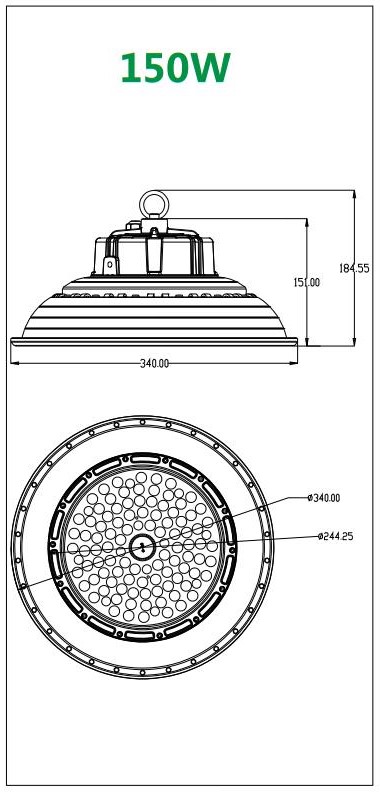

    Mechanical Dimension (Unit: mm)


    5eafc137afeeb.jpg  5eafc13803463.jpg  5eafc137e7f1e.jpg




    Package Information


    Model
    Carton SizeN.W.G.W.QTY
    VAHBL100W-S400*400*155 mm2.2 kg2.7 kg1pcs/carton
    VAHBL150W-S420*420*165 mm3.4 kg3.9 kg1pcs/carton
    VAHBL200W-S445*445*170 mm4.2 kg4.8 kg1pcs/carton

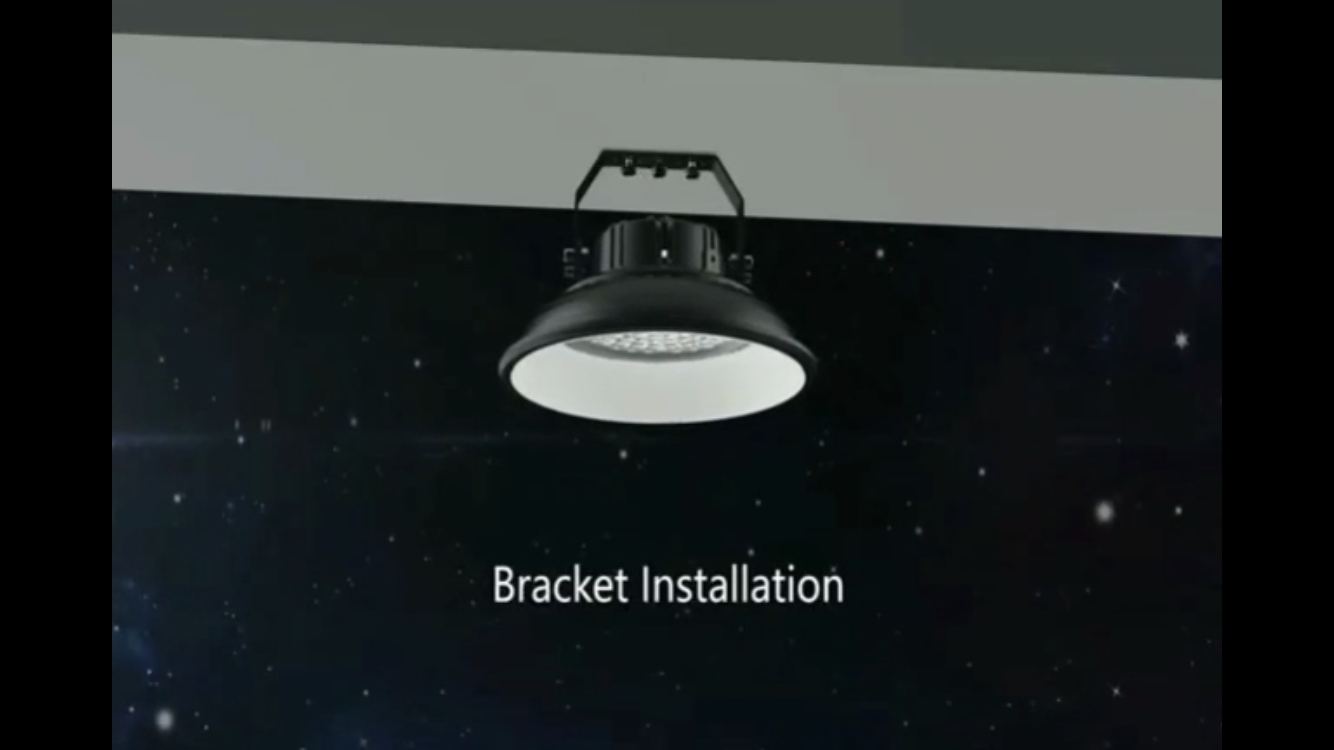

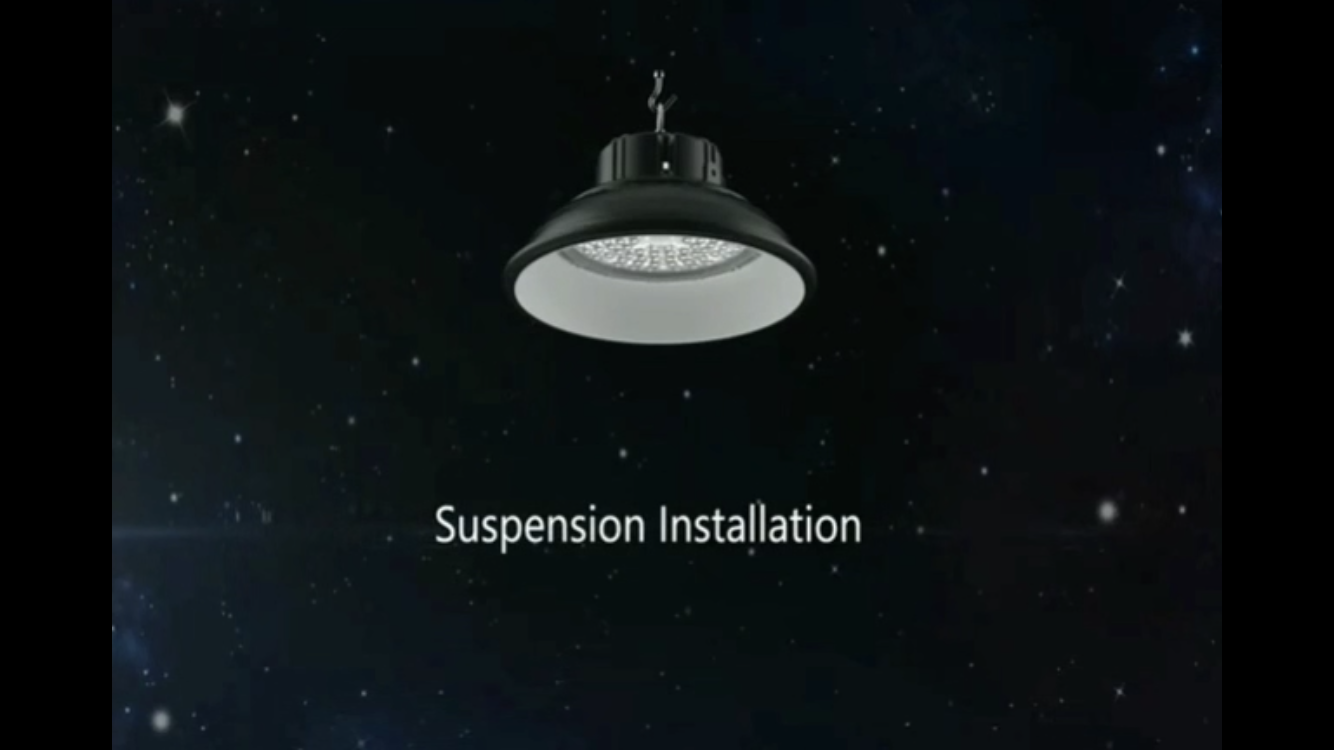

    Installation

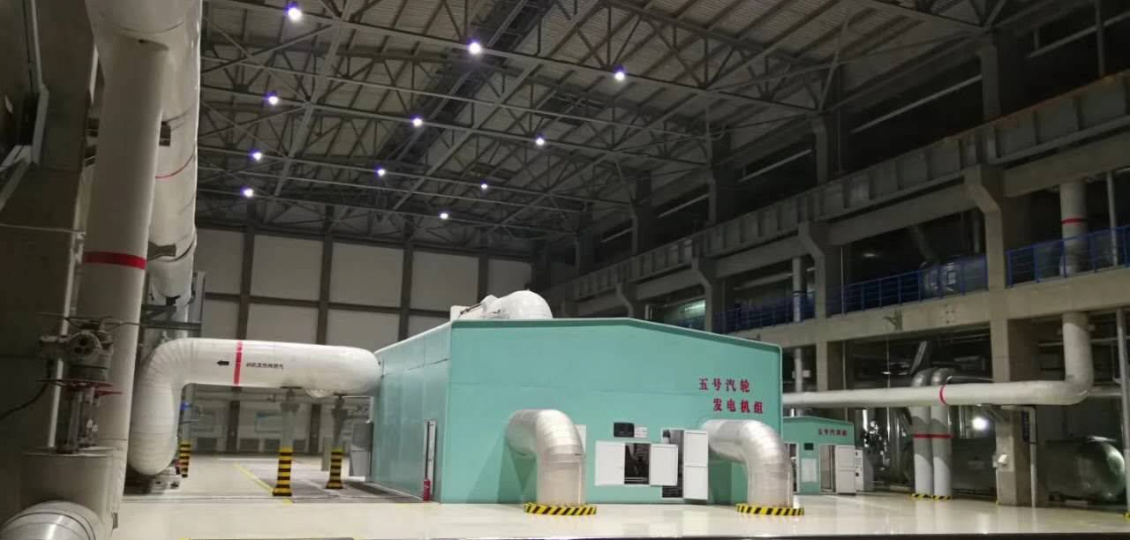

    Applications

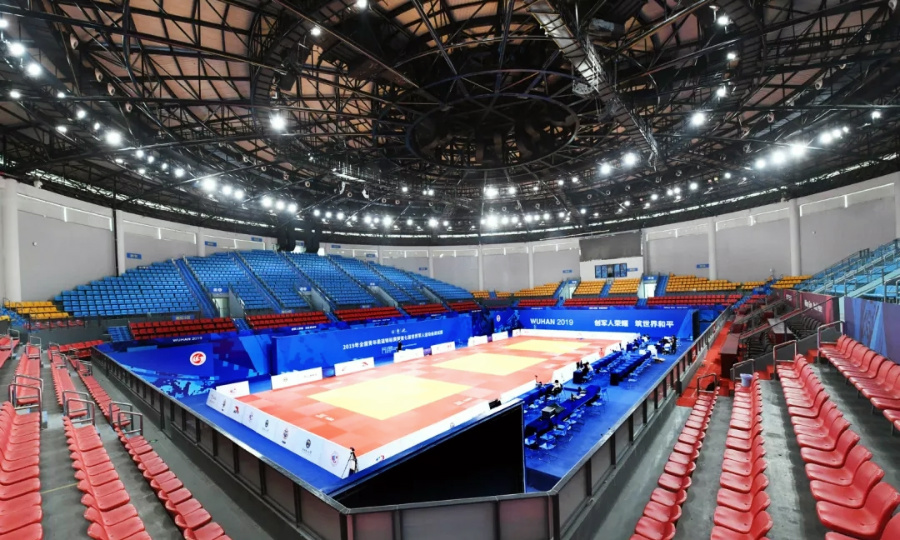

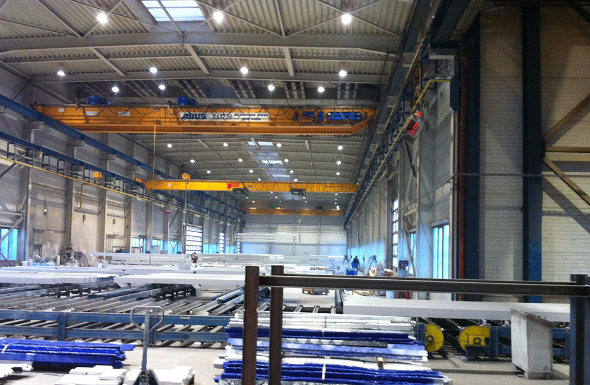

    Applicable to large workshop, airport, warehouse, parking lot, basement, gymnasium, etc.
