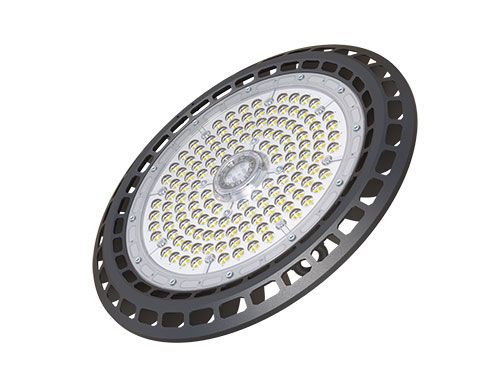

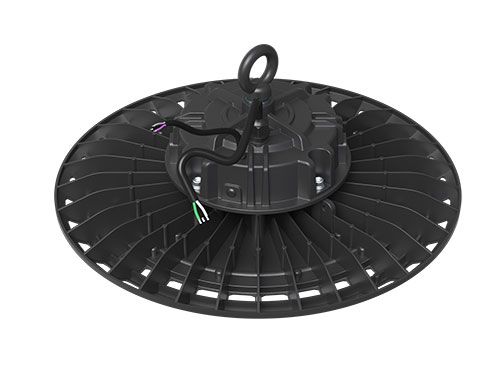

UFO High Bay with Motion Sensor- M SERIES

UFO High Bay with Motion Sensor- M SERIES

100W/150W/200W/240W

◆ Built-in microwave sensor optional

◆ Super thin unique design housing, excellent heat dissipation, cost saving for stock and delivery

◆ Optical device with PC lens 60°/90°/120°, IK08, anti UV

◆ Dimmable: 0-10VAC/PMW


  • Parameters


    Model
    Power ±5%

    Voltage

    Frequency

    CCT

    Lumens

    ±10%

    LEDs typeBeam Angle
    VAHBL100W-M100W

    AC100-277V&AC220-240V

    50/60Hz


    2700-

    6500K

    14000lm

    SMD2835

    Ra80

    120°/ 90° /

    60°

    VAHBL150W-M150W21000lm
    VAHBL200W-M200W28000lm
    VAHBL240W-M240W33000lm




    Unique Points


    ◆ Built-in microwave sensor optional

    ◆ Super thin unique design housing, excellent heat dissipation, cost saving for stock and delivery

    ◆ Optical device with PC lens 60°/90°/120°, IK08, anti UV

    ◆ Dimmable: 0-10VAC/PMW




    Product Features


    1. Built-in microwave sensor optional, do not need wiring, save labor time.

    2. High temperature series optional, applicable to special environment in temperature no more than 60ºC.

    3. Adopt LED of high lighting effect, lighting effect of luminaire reaches up to 140LM/W.

    4. Optical device with PC lens 60°/90°/120°, IK08, anti UV.

    5. CRI>80, good color rendering performance.

    6. LEDs are circularly arranged in symmetric, heat source are efficiently distributed in balance, high-efficient thermal conduction.

    7. Black and White housing are available with IP65 design.

    8. Can operate in -35ºC~+45ºC environment.

    Suitable for large workshop, airport, warehouse, parking lot, basement, gymnasium, etc.

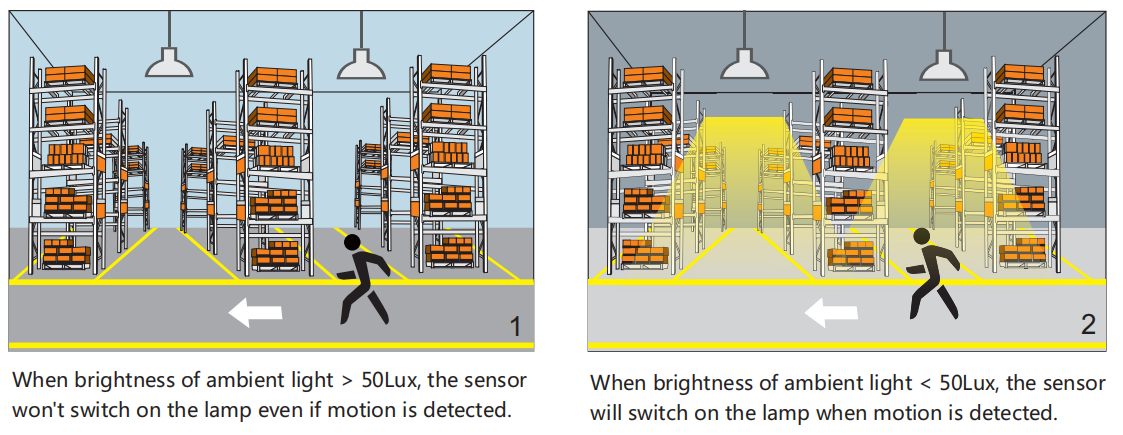

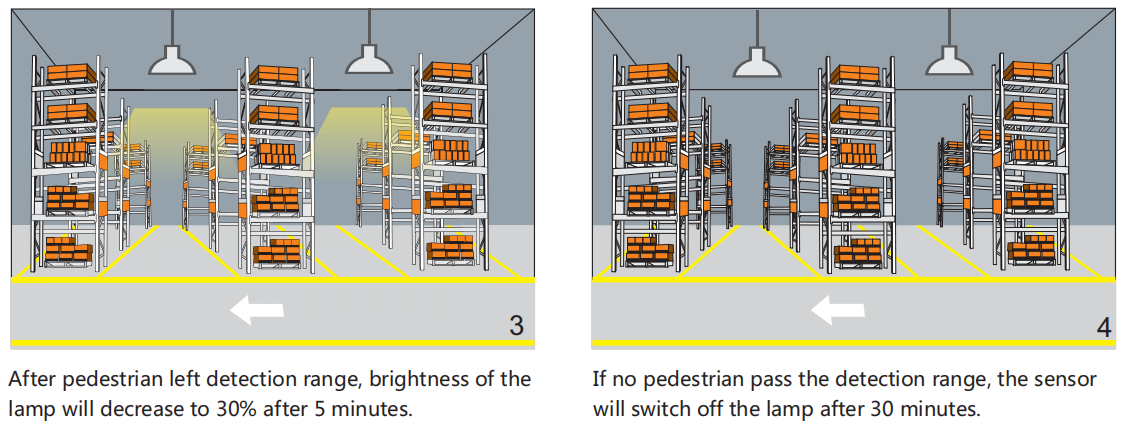

    Motion-sensing Function


    The sensor can detect brightness of ambient light and moving objects, with insufficient ambient light, the sensor switch on the lam when motion is detected.






    * The above examples are factory default setting parameters, please contact us if need any change of purchase remote controller separately to change parameters as you like.

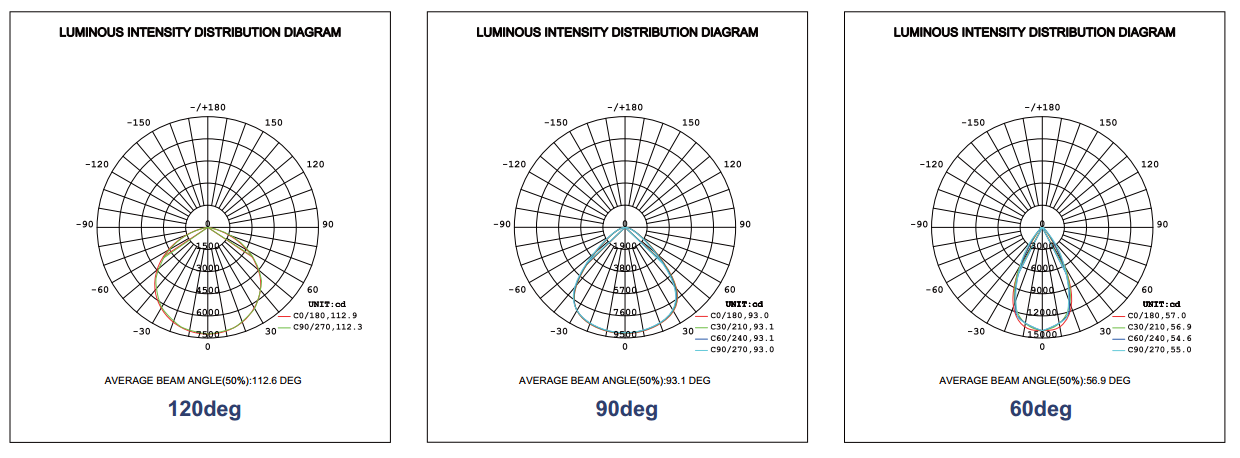

    Distribution Diagram

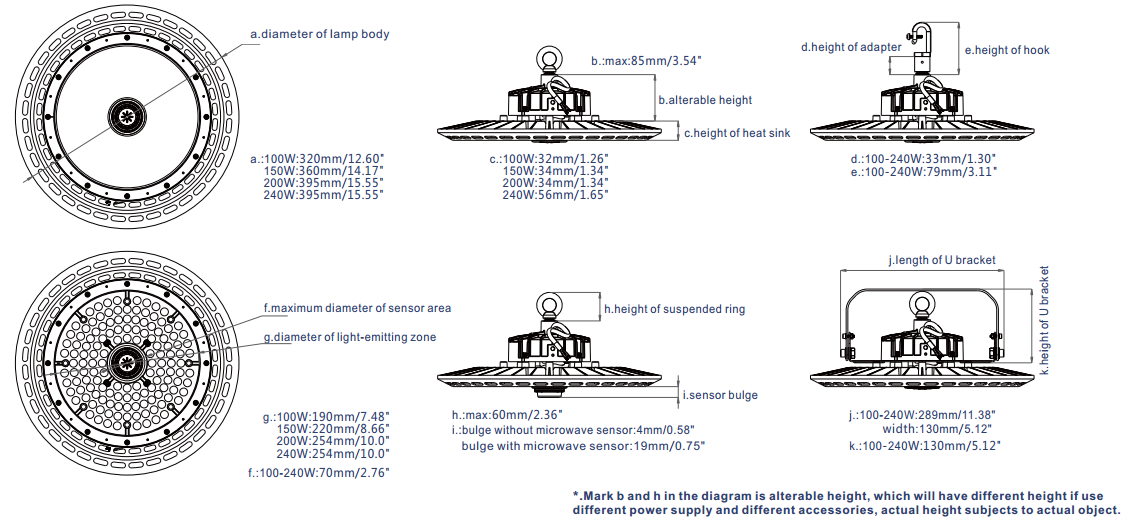

    Mechanical Dimension (Unit: mm)

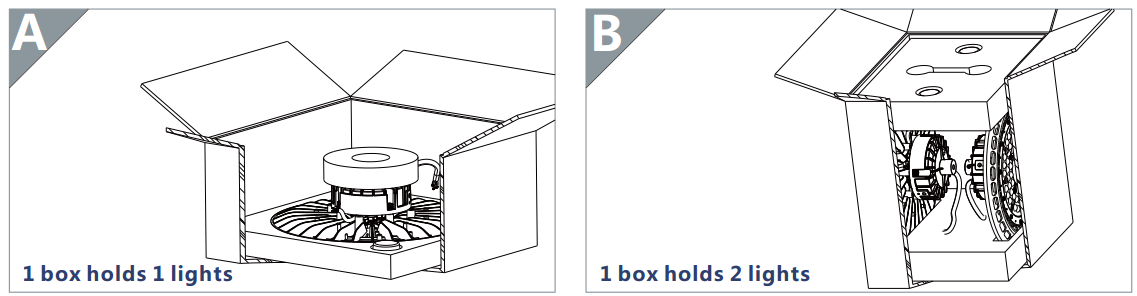

    Package Information

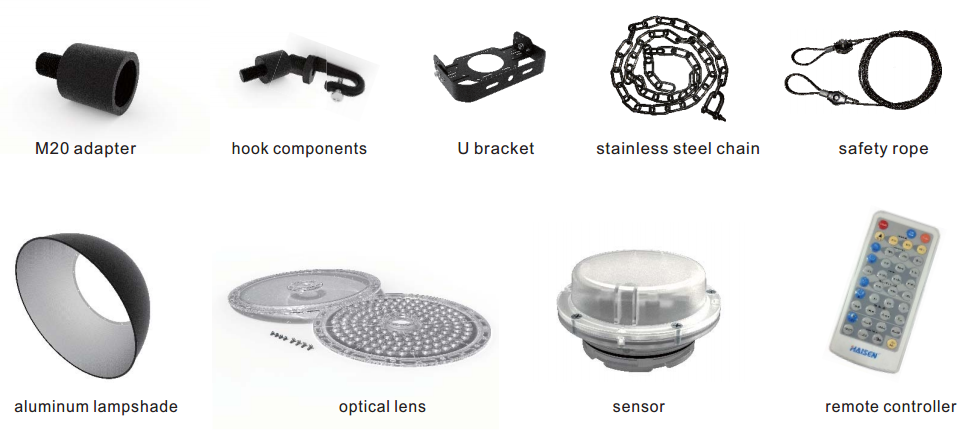

    Reference Diagram of Accessories

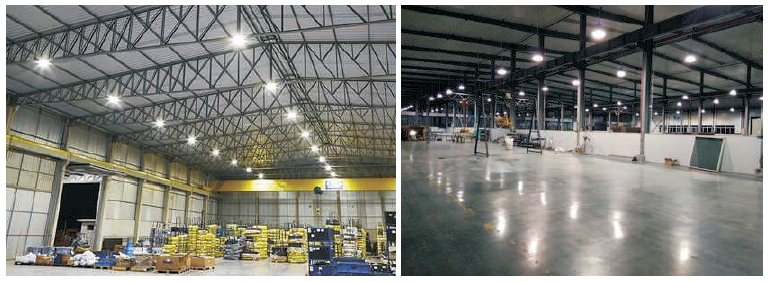

    Applications


    Applicable to large workshop, airport, warehouse, parking lot, basement, gymnasium, etc.
