◆ The rotary end cover facilitates to open for wiring and saves more than half of the installation time
◆ With press type terminals, wiring is performed without use of tolls
◆ No buckles, beautiful appearance
Parameters
| Model | Power ±5% | Voltage Frequency | CCT | Lumens ±10% | LEDs type | Beam Angle |
| VASFL20W-K | 20W | AC220-240V 50/60Hz | 2700- 6500K | 1900lm | SMD2835 Ra＞80 | 120° |
| VASFL40W-K | 40W | 3800lm | ||||
| VASFL50W-K | 50W | 5000lm | ||||
| VASFL60W-K | 60W | 6000lm |
Product Features
1. The rotary end cover facilitates to open for wiring and saves more than half of the installation time.
2. With press type terminals, wiring is performed without use of tolls.
3. No buckles, beautiful appearance;
4. High transparent cover, high lighting effect, giving out even and soft light. 100lm/w and 130lm /w for selection.
5. PC materials for the whole lamp, high impact resistance, IK08;
6. Extrusion design for the lamp body, higher waterproof performance, IP65.
7. Use environment temperature: -40℃ ~ 40℃(normal series), -25℃ ~ 35℃(sensing series);

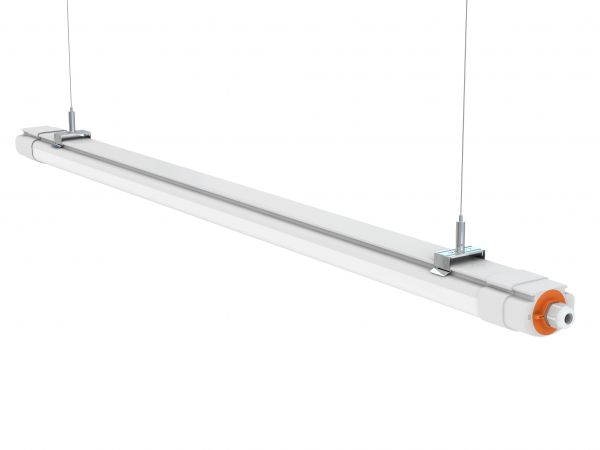

8. Two installation modes for selection: ceiling holder and suspension rope.
9. Corrosion-proof grade: mild corrosion prevention.

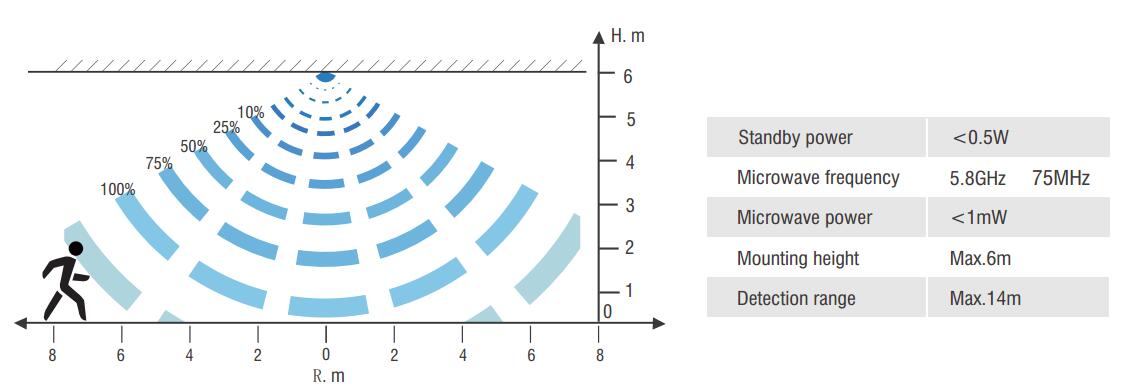

Sensing series introduction

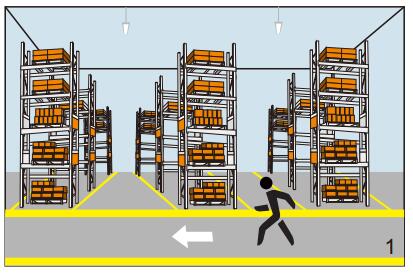

The K series lamps that built-in sensor can detect moving objects and environment brightness.
The lamp keeps off in the daytime.

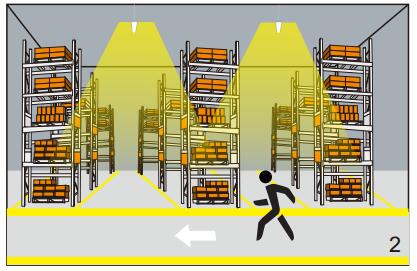

In the evening, if there is moving object around, the lamp switch on.

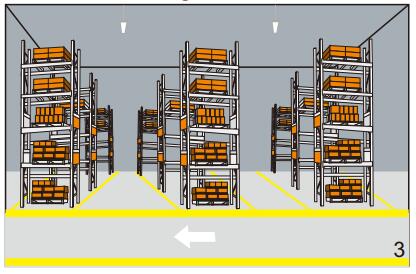

No moving abject around, 5 minutes later the lamp switch off.

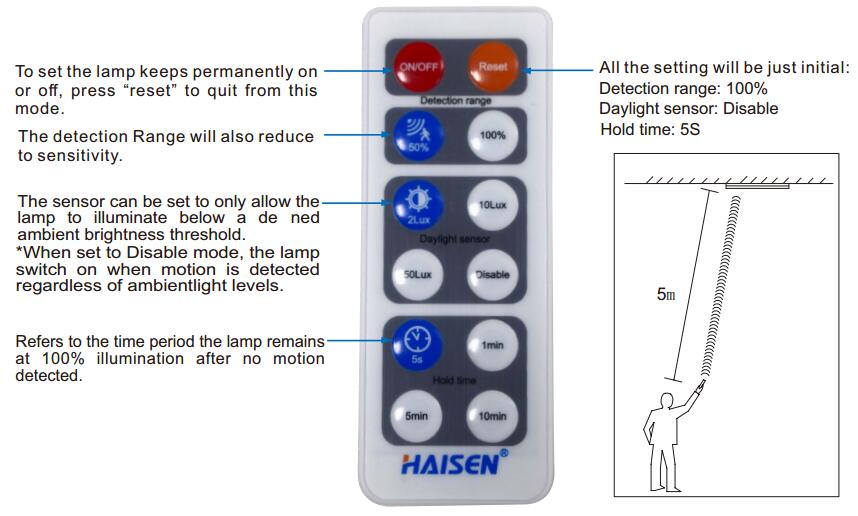

Remote controller introduction
All control parameters are set via a remote controller. the remote controller need to be bought separately.

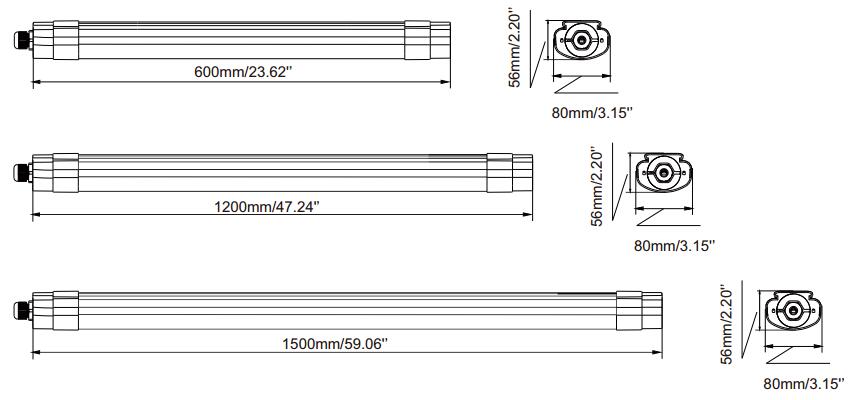

Mechanical Dimension (Unit: mm/inch)

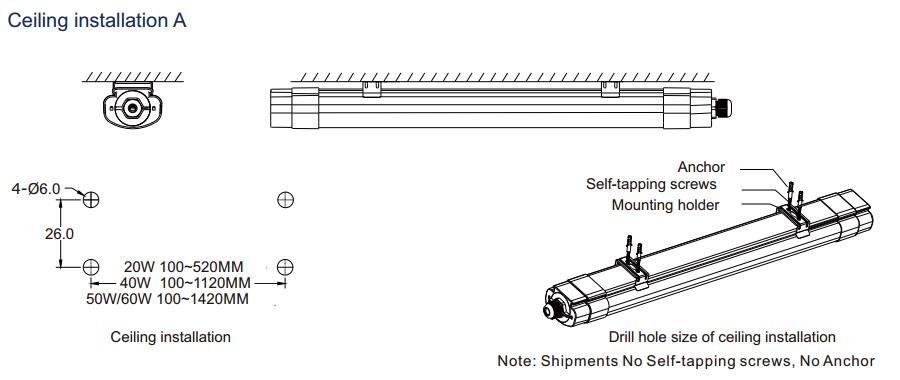

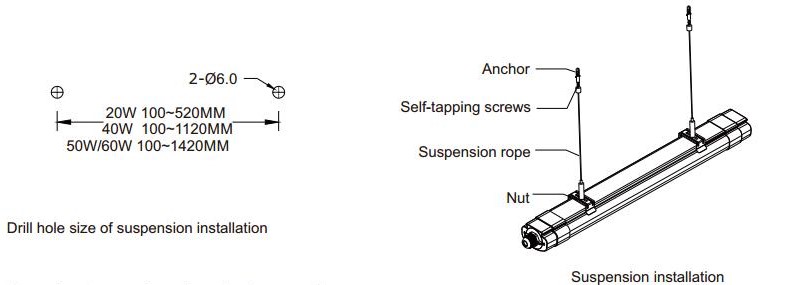

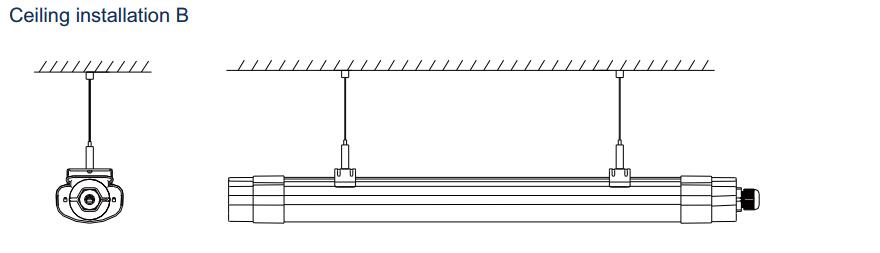

Installation Instruction

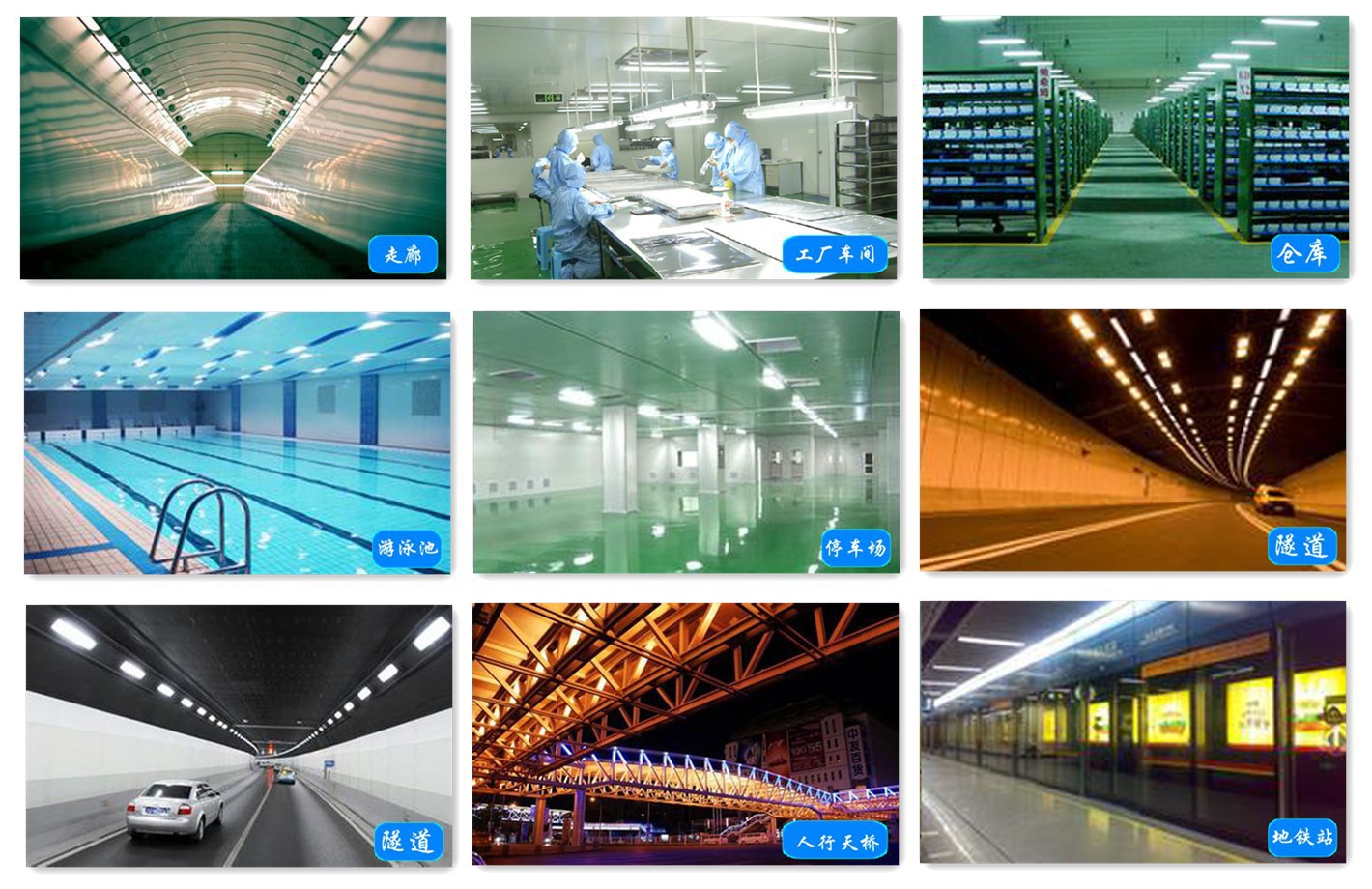

Applications
Tri-proof light is widely used in warehouse, parking lot, foodstuffs factory, dust plant and refrigeratory and other sites.
