◆ Minimalist-inspired design, exquisite and generous
◆ Two different size of arm holder (60mm/40mm), applicable for wider range street
◆ Optional with street light adapter, with a clear scale, 120° adjustable
◆ Offer IES , 5 years warranty, OEM
Parameters
| Model | Power ±5% | Voltage Frequency | CCT | Lumens ±10% | LEDs type | Beam Angle |
| VALSL30W-Y | 30W | AC100-277V 50/60Hz | 2700- 6500K | 3900lm | Lumileds 3030 Ra＞80 | 150°x 75° |
| VALSL40W-Y | 40W | 5200lm | ||||
| VALSL60W-Y | 60W | 7800lm | ||||
| VALSL80W-Y | 80W | 10400lm | ||||
| VALSL120W-Y | 120W | 15600lm | ||||
| VALSL150W-Y | 150W | 19500lm |
Unique Points
◆ High purity profiled aluminum, with excellent heat dissipation
◆ Minimalist-inspired design, exquisite and generous
◆ Ultra-thin SMD3030 LED street light
◆ Two different size of arm holder (60mm/40mm), applicable for wider range street
◆ Optional with street light adapter, with a clear scale, 120° adjustable
◆ Offer IES , 5 years warranty, OEM

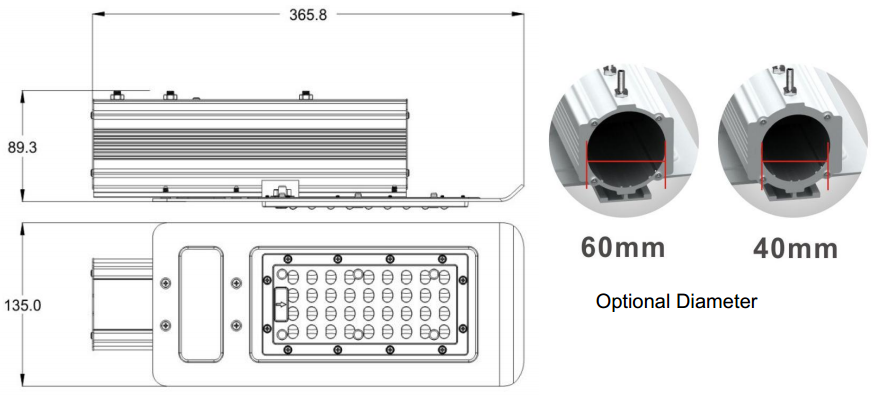

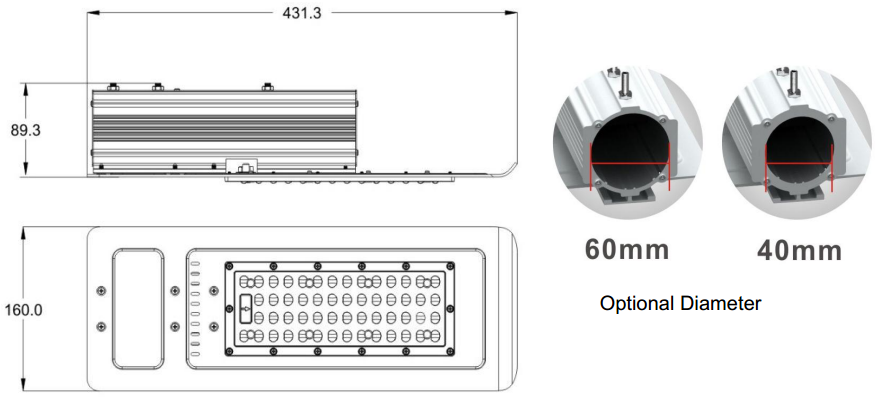

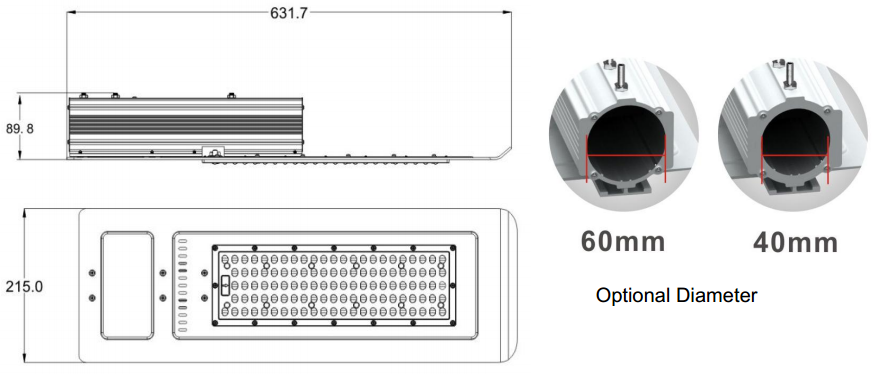

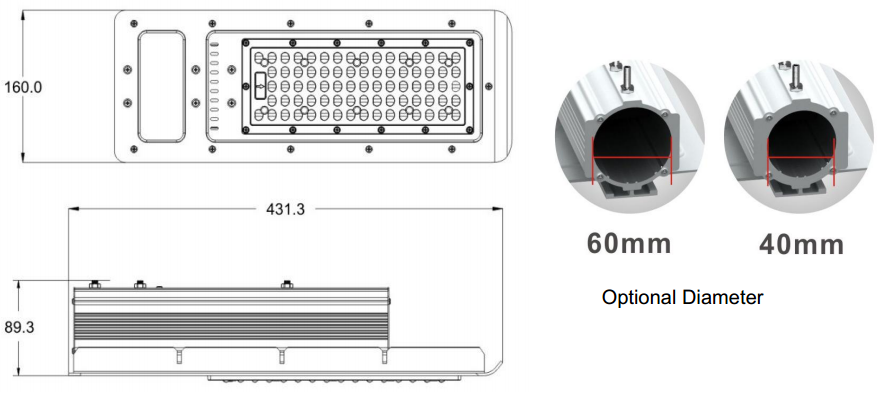

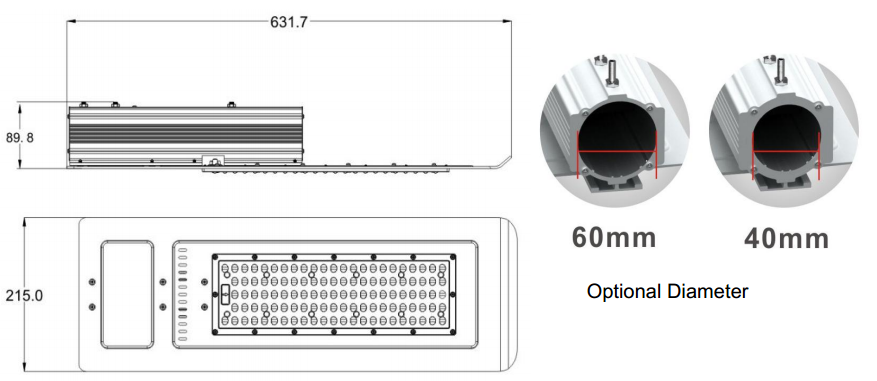

Mechanical Dimension (Unit: mm)
VALSL30W-Y VALSL40W-Y
VALSL60W-Y VALSL80W-Y
VALSL120W-Y VALSL150W-Y
Optical Parameter

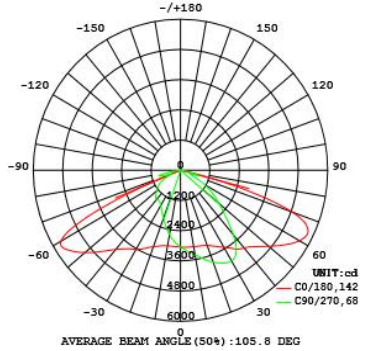

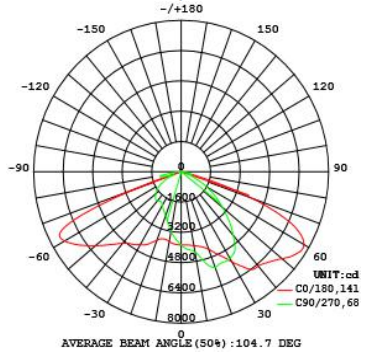

Luminous Intensity Distribution curve

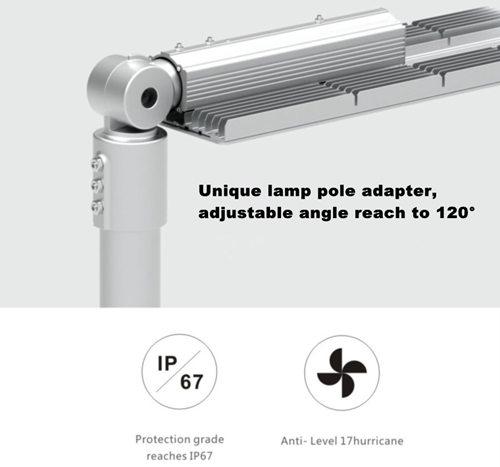

Street Light Adapter

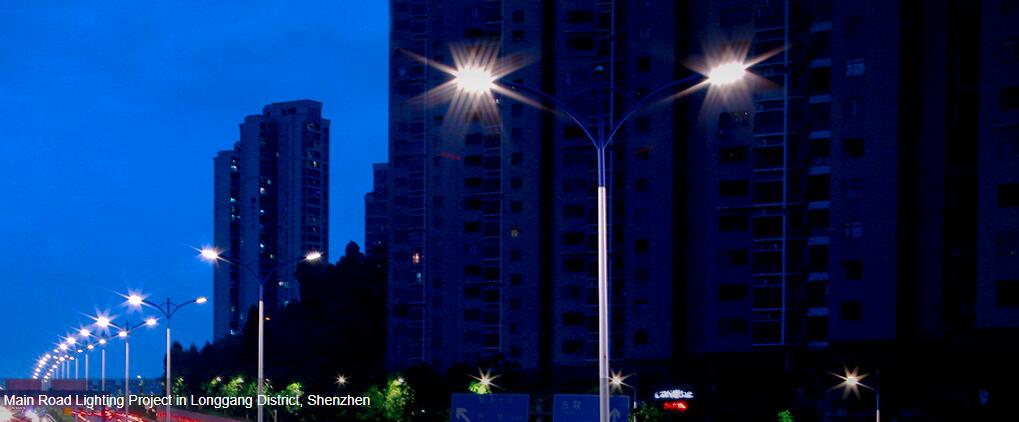

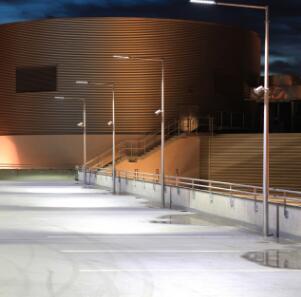

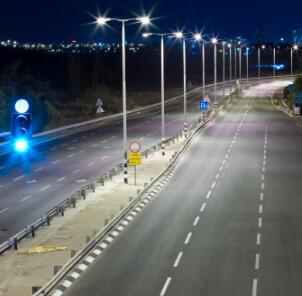

Applications
Suitable for gardens, yards, villas, parks, rooftops, gymnasiums, buildings, roads, streets, squares, factories etc.
