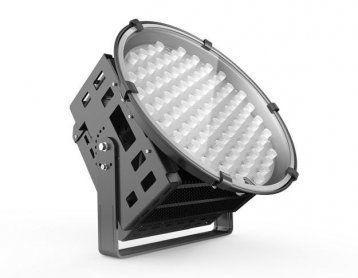

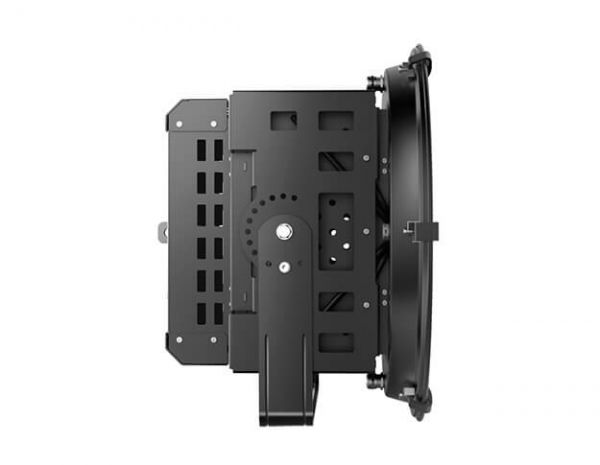

LED PROJECTOR LIGHT 100W/150W/200W/250W/500W

LED PROJECTOR LIGHT 100W/150W/200W/250W/500W

100W/150W/200W/250W/500W

◆ Professional lighting distribution

◆ By riveting the copper heat-pipe to the fins

◆ Protection grade reaches IP65

◆ HDT technology, seamless fitting and Fin fastening patent technology

◆ Offer IES , 5 years warranty



  • Parameters


    Model
    Power ±5%

    Voltage

    Frequency

    CCT

    Lumens

    ±10%

    LEDs typeBeam Angle
    VALPL100W100W

    AC100-277V

    50/60Hz

    2700-

    6500K

    12000lmCREE XTE7° / 10° / 15° / 25° / 30° / 60°
    VALPL150W150W18000lmCREE XML
    VALPL200W200W24000lmCREE XML
    VALPL250W250W30000lmCREE XTE
    VALPL500W500W60000lmCREE XML




    Product Features


    1. Professional lighting distribution with various beam angle options.

    2. Adopt CREE LED and Meanwell driver to ensure the excellent performance of the lamp.

    3. CRI>80, good color rendering performance.

    4. Black and Grey housing are available with IP65 design.

    5. Can operate in -35ºC~+45ºC environment.

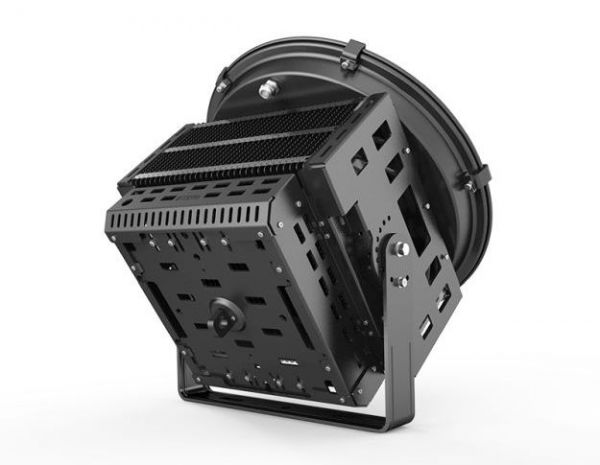

    3D Cooling Technology


    Adopt unique FIN type heat dissipation structure design, 3D heat created air convection channel, combined with overclocking three gear shaper, efficient heat dissipation FIN process.





    Copper Heat-pipe


    Heat pipe by using the theory of heat transfer and refrigeration, rapid heat transfer quickly to the heat source, thermal capacity than any known metal.

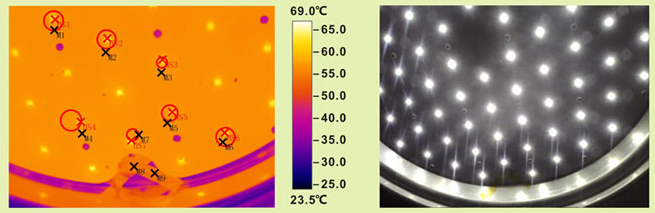

    Temperature Test Report



    * VALPL250W   250W

    Test   Point

    LED1

    LED2

    LED3

    LED4

    LED5

    LED6

    LED7

    Temperature

    64.3

    63.4

    63.6

    63.5

    64.1

    63.9

    63.8

    Test Condition:

    Environment Temperature: 26℃

    Input Voltage: 220V AC 50Hz

    Input Power: 252W

    Test Time: 3 Hours

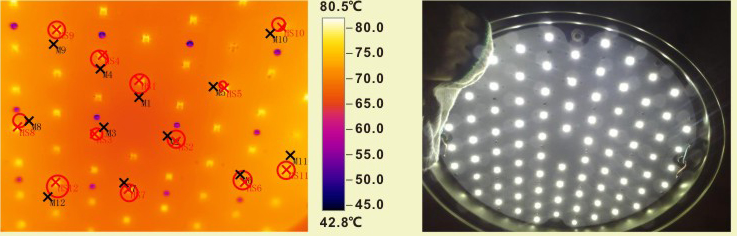

    * VALPL500W   500W

    Test   Point

    LED1

    LED2

    LED3

    LED4

    LED5

    LED6

    LED7

    Temperature

    78.3

    78.4

    78.6

    78.5

    79.1

    78.9

    77.8

    Test Condition:

    Environment Temperature: 28℃

    Input Voltage: 220V AC 50Hz

     Input Power: 498W

     Test Time: 3 Hours

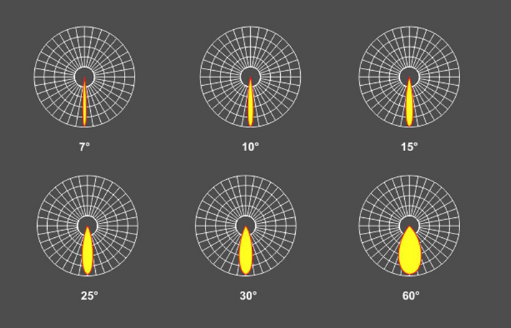

    More Beam Angle for Option


    Professional stadium light design concept, with 7° / 10° / 15° / 25° / 30° / 60° a variety of lighting angles, to meet the needs of different occasions.

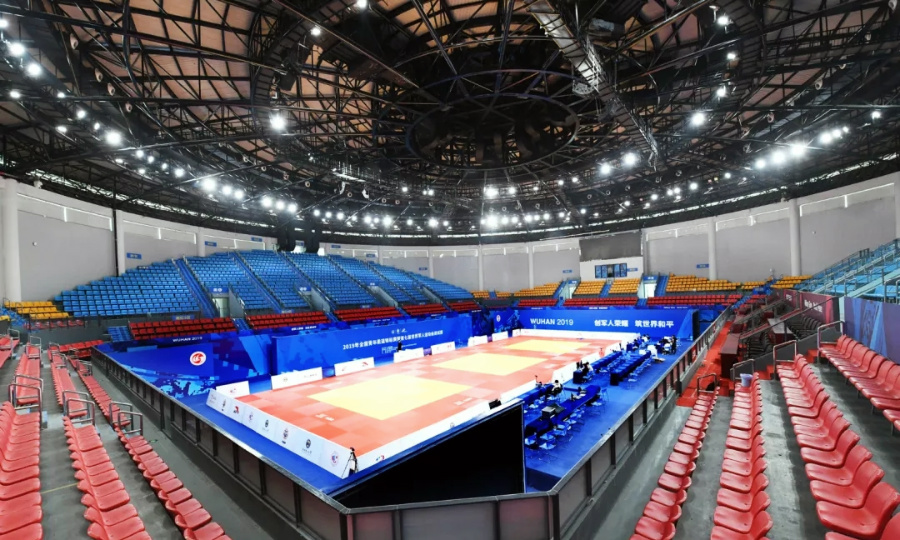

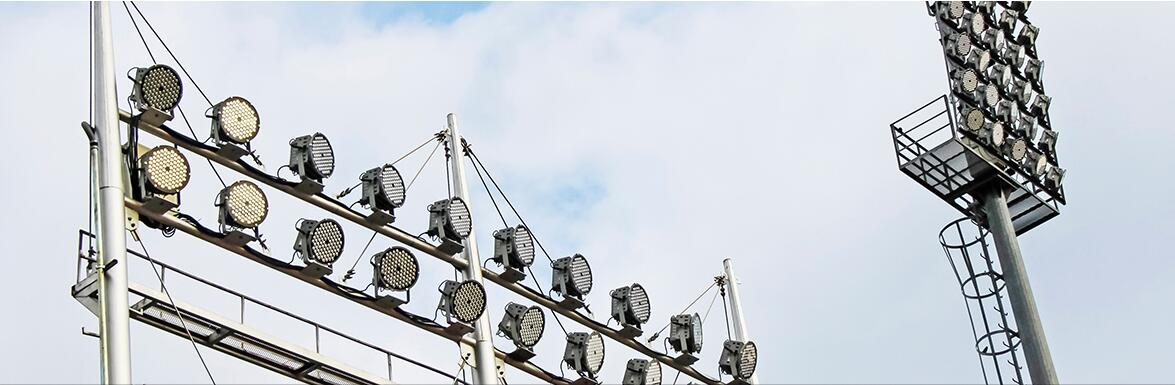

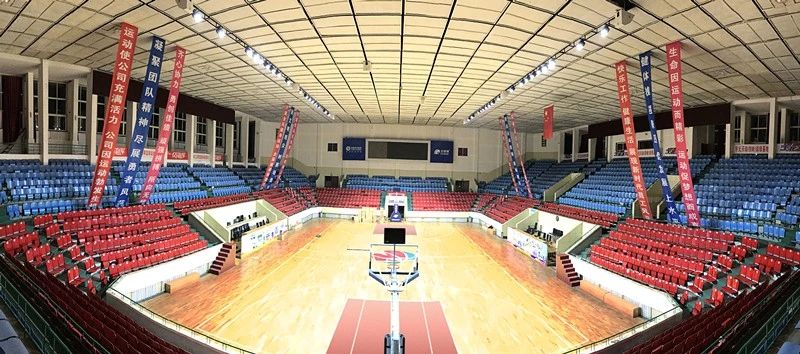

    Applications


    Applicable to large soccer fields, rugby fields, golf courses, ski slopes, racetracks and sports training venues and other places. Perfect to meet the domestic and international events HD relay demands.
