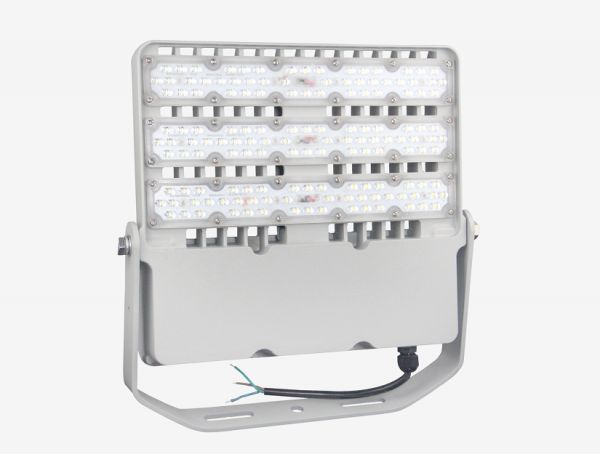

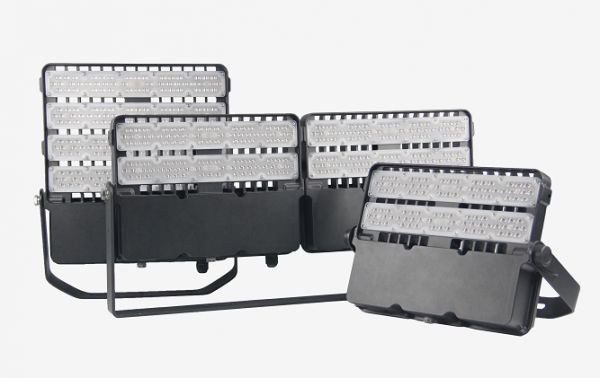

LED MODULAR FLOODLIGHT

LED MODULAR FLOODLIGHT

50W/100W/150W/200W/300W/400W/600W/960W

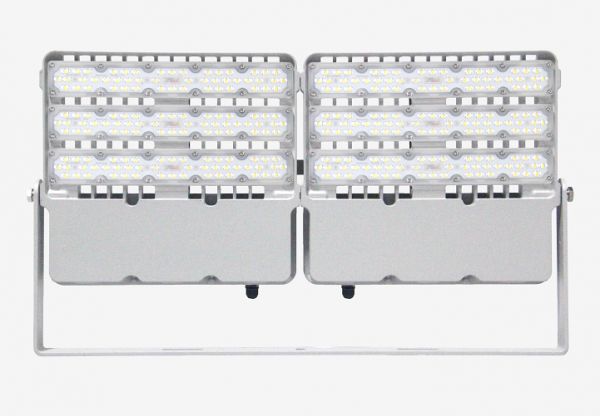

◆ Modular combine as you like to different occasions
◆ High efficiency, up to 120~150 lm/w
◆ Beam angle 30°/60°/90°/80x140° for option

◆ 0-10V dimmable, time control, daylight sensor available

◆ Housing color: Black & Grey

  • Parameters


    Model
    Power ±5%

    Voltage

    Frequency

    CCT

    Lumens

    ±10%

    LEDs typeBeam Angle
    VAFL50W-M50W

    AC100-277V

    50/60Hz

    2700-

    6500K

    6000lm

    Lumileds

    3030

    Ra>80

    30°/60°/90°/ 80x140°

    VAFL100W-M100W12000lm
    VAFL150W-M150W18000lm
    VAFL200W-M200W24000lm
    VAFL300W-M300W36000lm
    VAFL400W-M400W48000lm
    VAFL600W-M600W72000lm
    VAFL960W-M960W120000lm




    Unique Points


    ◆ Modular combine as you like to different occasions
    ◆ High efficiency, up to 120~150 lm/w
    ◆ Beam angle 30°/60°/90°/80x140° for option

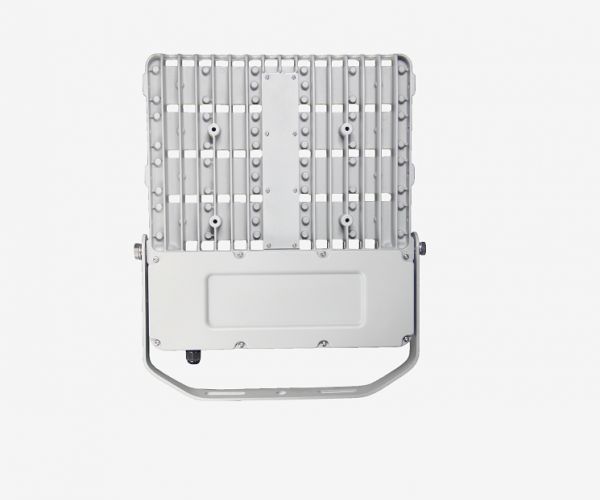

    Integrated AL heat sink, flat honeycomb- shaped design

    ◆ 0-10V dimmable, time control, daylight sensor available

    ◆ Housing color: Black & Grey
    ◆ IP66, 5 years warranty

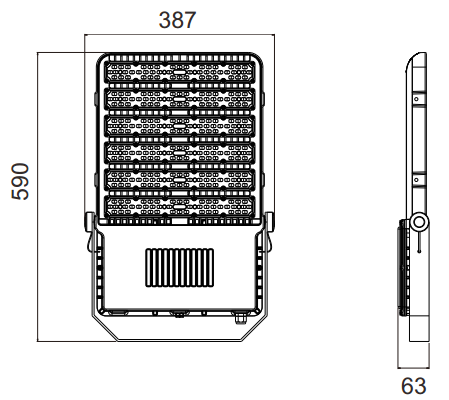

    Mechanical Dimension (Unit: mm)

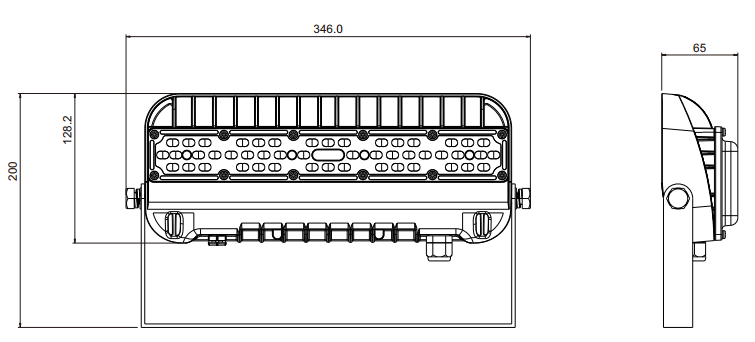

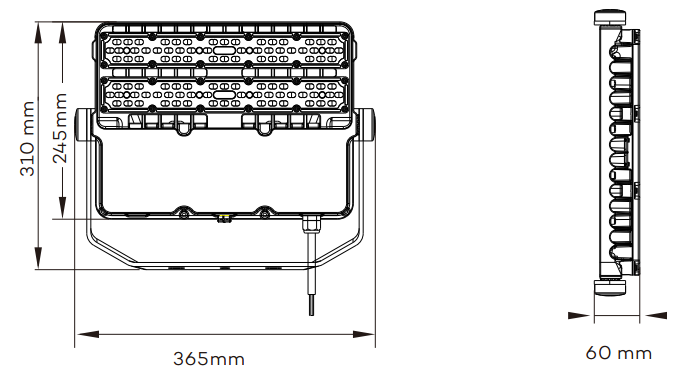

    5ea7a2866548c.png 5ea7a2746b110.png

    VAFL100W-M                                                                      VAFL50W-M

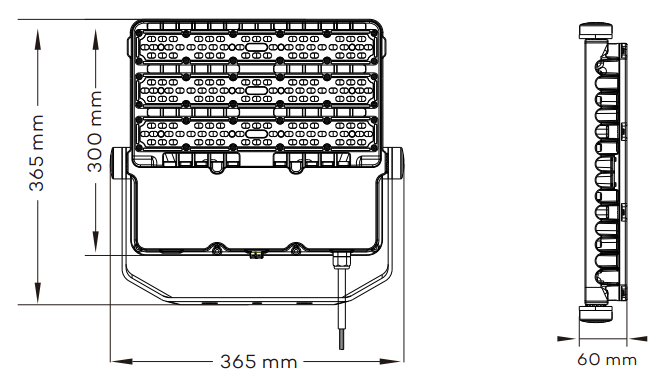

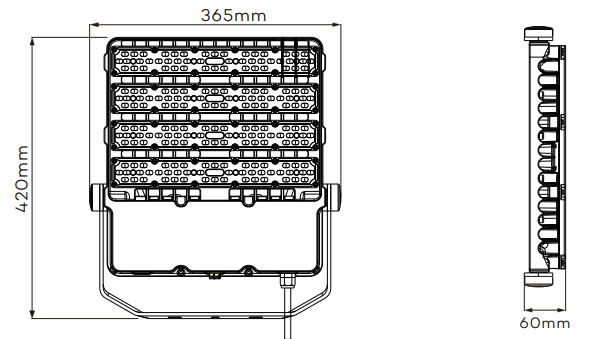

    5ea7a2b8151a7.png 5ea7a2b85715f.png

    VAFL150W-M                                                                       VAFL200W-M




    VAFL300W-M

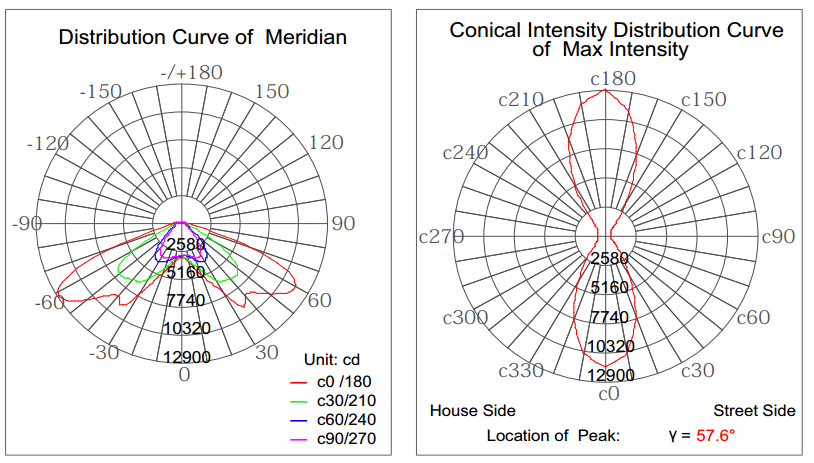

    Luminous Intensity Distribution curve

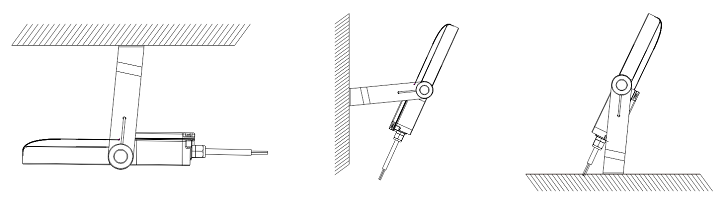

    Installation

    Fix the bracket on the wall by screws and then adjust the lamp body to proper orientation







    Attention


    1.If the light does not work, check the cable connection and make sure the AC cable is connected in strict accordance with the label tips.
    2.Do not scrub the light with wet cloth.
    3.Do not install in wet, water leakage and unstable places.
    4.Turn off the power before installation and demount.
    5.Please turn to professional electrician if any failure.

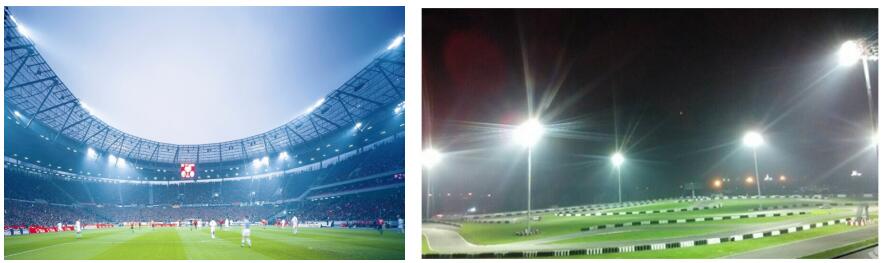

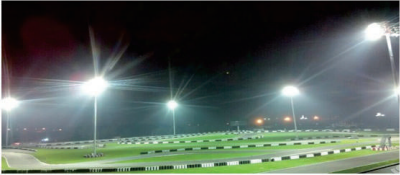

    Applications


     Widely used in gardens, buildings, advertisements, industrial lighting and other relevant sites including lighting in parks, squares, underground passages, building external walls, wharf and ports, construction sites, etc
