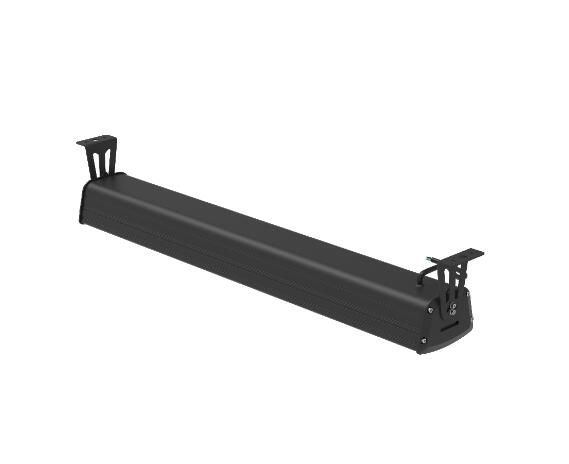

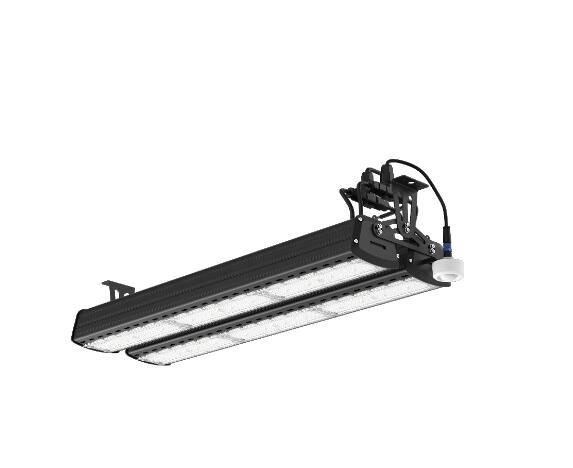

LED LINEAR HIGH BAY LIGHT - L3 SERIES

LED LINEAR HIGH BAY LIGHT - L3 SERIES

50W/100W/150W/200W/300W

◆ Aluminum profile+PC lens,high impact-resistance

◆ 0-10V dimming and microwave induction

◆ High lighting effect of LEDs up to 130LM/W

◆ Various installation ways: Pendant chain installation ; L-shape rotating bracket ceiling or wall installation


  • Parameters


    Model
    Power ±5%

    Voltage

    Frequency

    CCT

    Lumens

    ±5%

    LEDs typeBeam Angle
    VALHBL50W-L350W

    AC100-277V

    50/60Hz

    2700-

    6500K

    6,500lm

    LumiledsSMD 2835

    Ra>80

    40° / 60° / 90° / 30x70° / 40x120°

    VALHBL100W-L3100W13,000lm
    VALHBL150W-L3150W19,500lm
    VALHBL200W-L3200W26,000lm
    VALHBL300W-L3300W

    39,000lm




    Unique Points



    ◆ Patented Plug&Play sensor

    ◆ 0-10V dimming and microwave induction

    ◆ Flexible combination of 2-4 modules is applicable to all type of application site

    ◆ Various installation ways: suspended, ceiling and pole installation







     Product Features



    1. Adopt waterproof structure design,waterproof level up to IP65

    2. Aluminum profile+PC lens,high impact-resistance

    3. High lighting effect of LEDs up to 130LM/W

    4. CRI ≥80, good color rendering performance

    5. Compact appearance, easy to install and transport

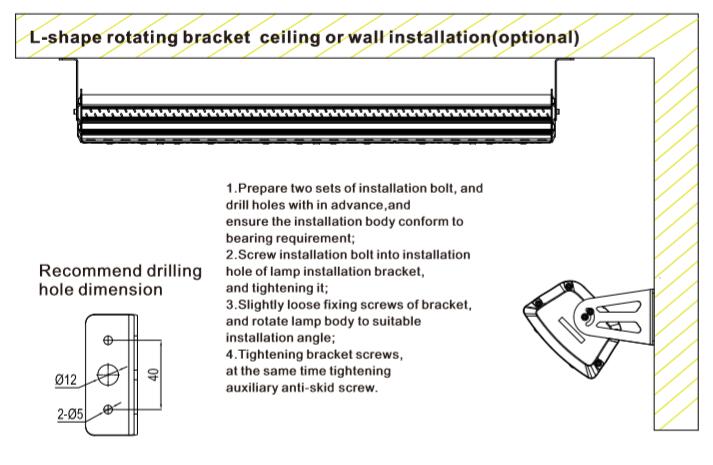

    6. Multiple installation methods for option: Pendant chain installation, L-shape rotating bracket ceiling or wall installation

    7. Indoor slight corrosion-proof grade;Application environment -35~50℃

    8. 5 years warranty.

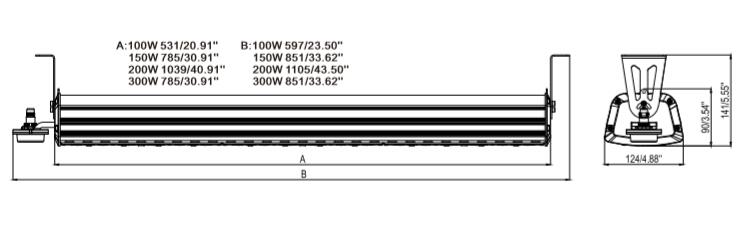

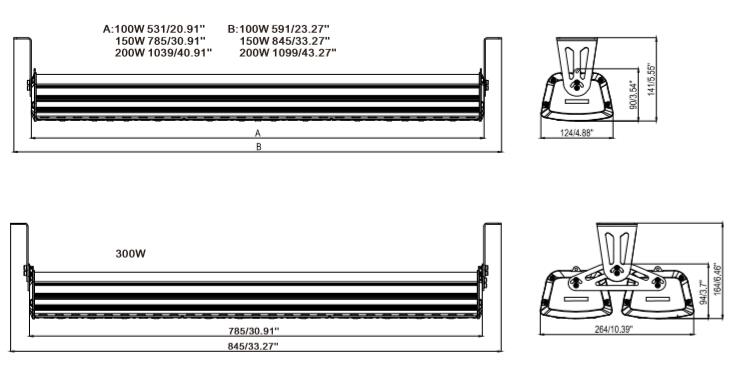

    Mechanical Dimension (Unit: mm)

    size 1.jpg


    size 2.jpg

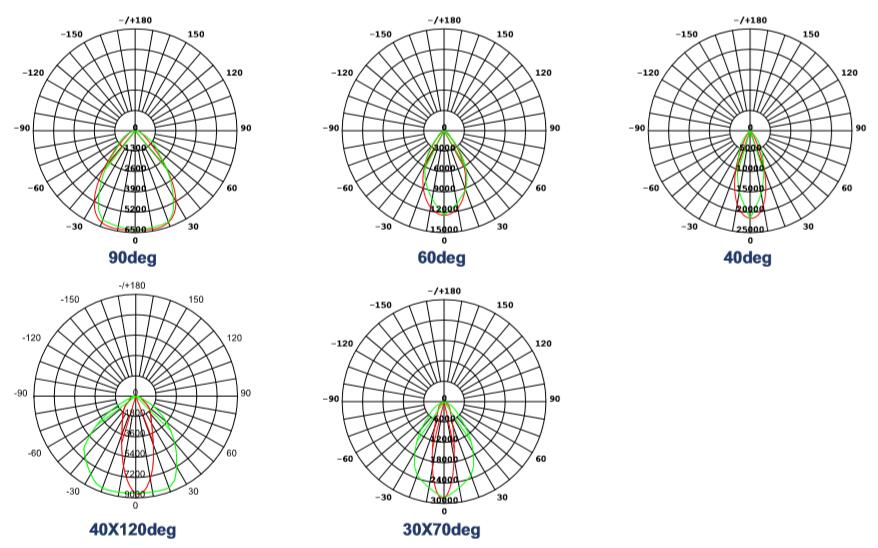

    Light Distribution Diagram


    distribution diagram with optical lenses.jpg

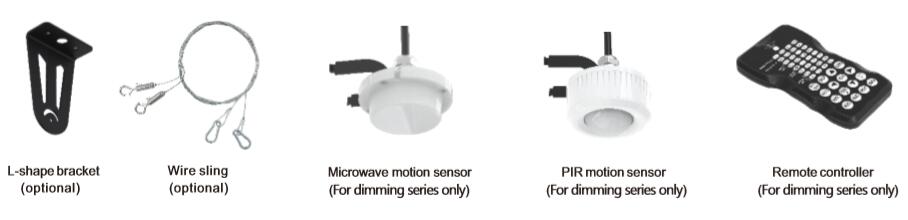

    Accessories for Installations





    Installation Instruction

    Warning:

    Switch off the power supply before the installation and let the electrician or the person who has the same ability to install the light.

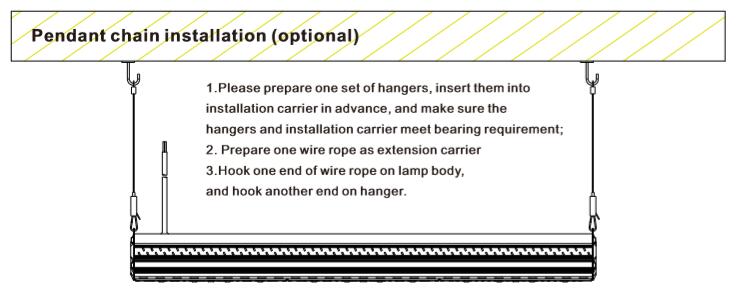

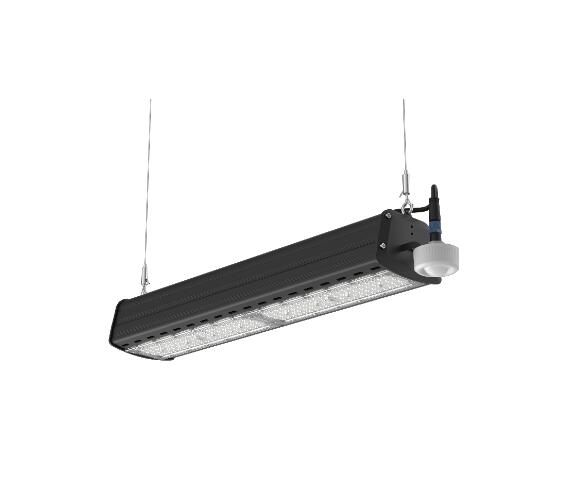

    1. Suspended Installation

    installation 1.jpg



    2. Pole Installation

    installation 2.jpg



    Optional Functions

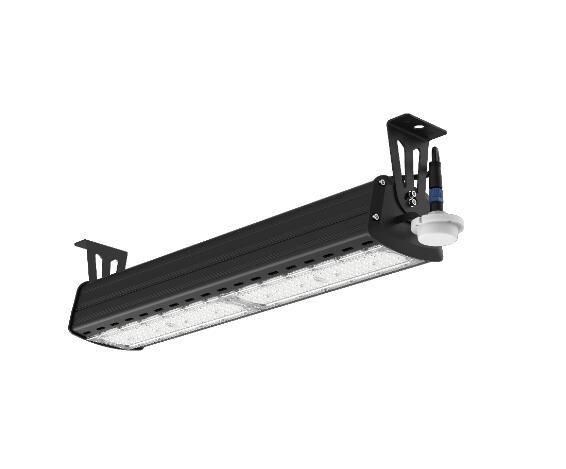

    1. Motion Sensor


    sensor installation.jpg

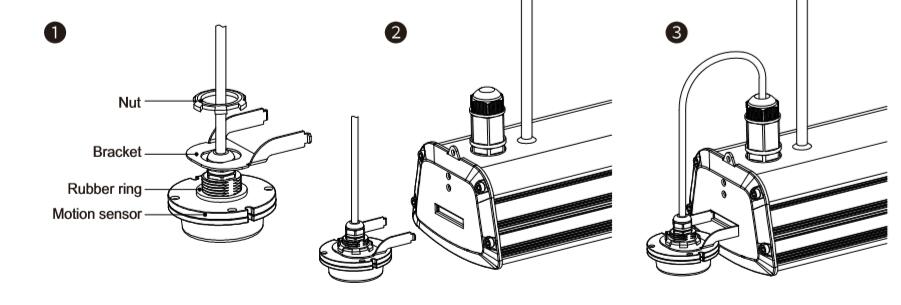

    Motion Sensor Installation:

    ① Fix the bracket to the sensor according to drawing picture above.

    ② Fix The sensor to the cover as shown above.

    ③ Please connect the sensor to the lamp terminal according to the wiring diagram.

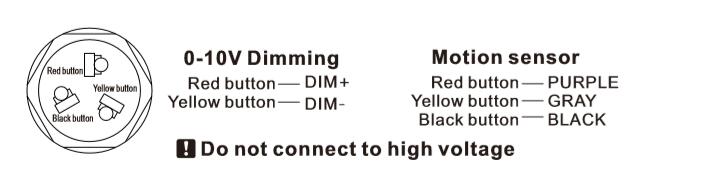

    0-10V dimming and Motion sensor wiring:

    sensor wiring instruction.jpg

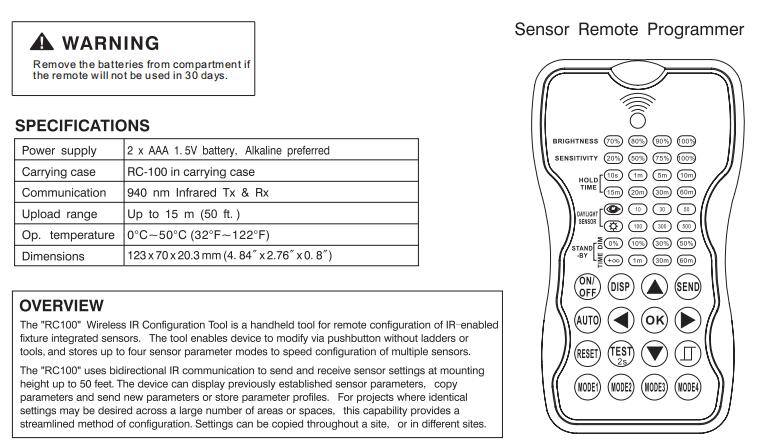

    2. Remote Controller


    remote controller.jpg

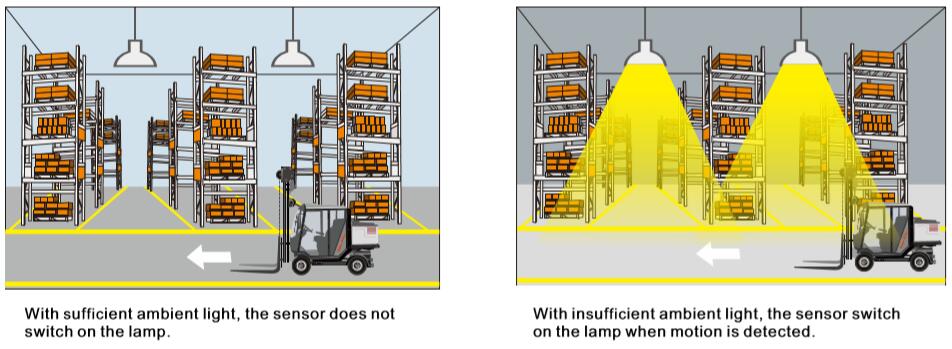

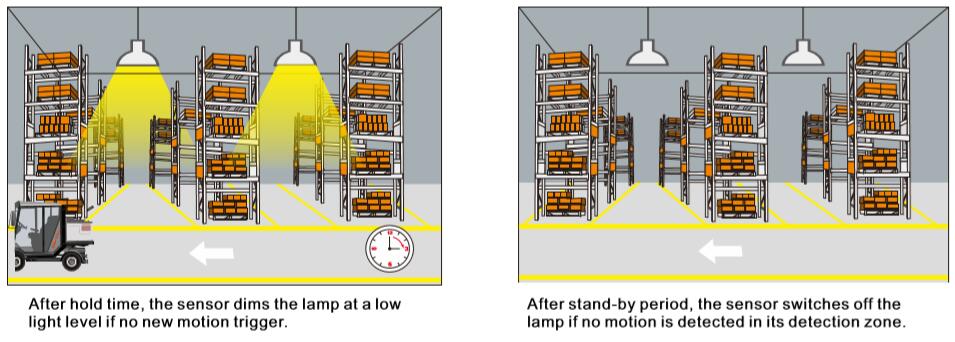

    Motion-sensing Function


    The Linear high bay Lighting with sensor is innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials. Except the higher mounting height 15m Max. Combination with 1-10V dimmable LED drivers , the lamp with sensor can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off. When enable the built-in adjustable daylight.

    sensor function 1.jpg

    sensor function 2.jpg




    Applications

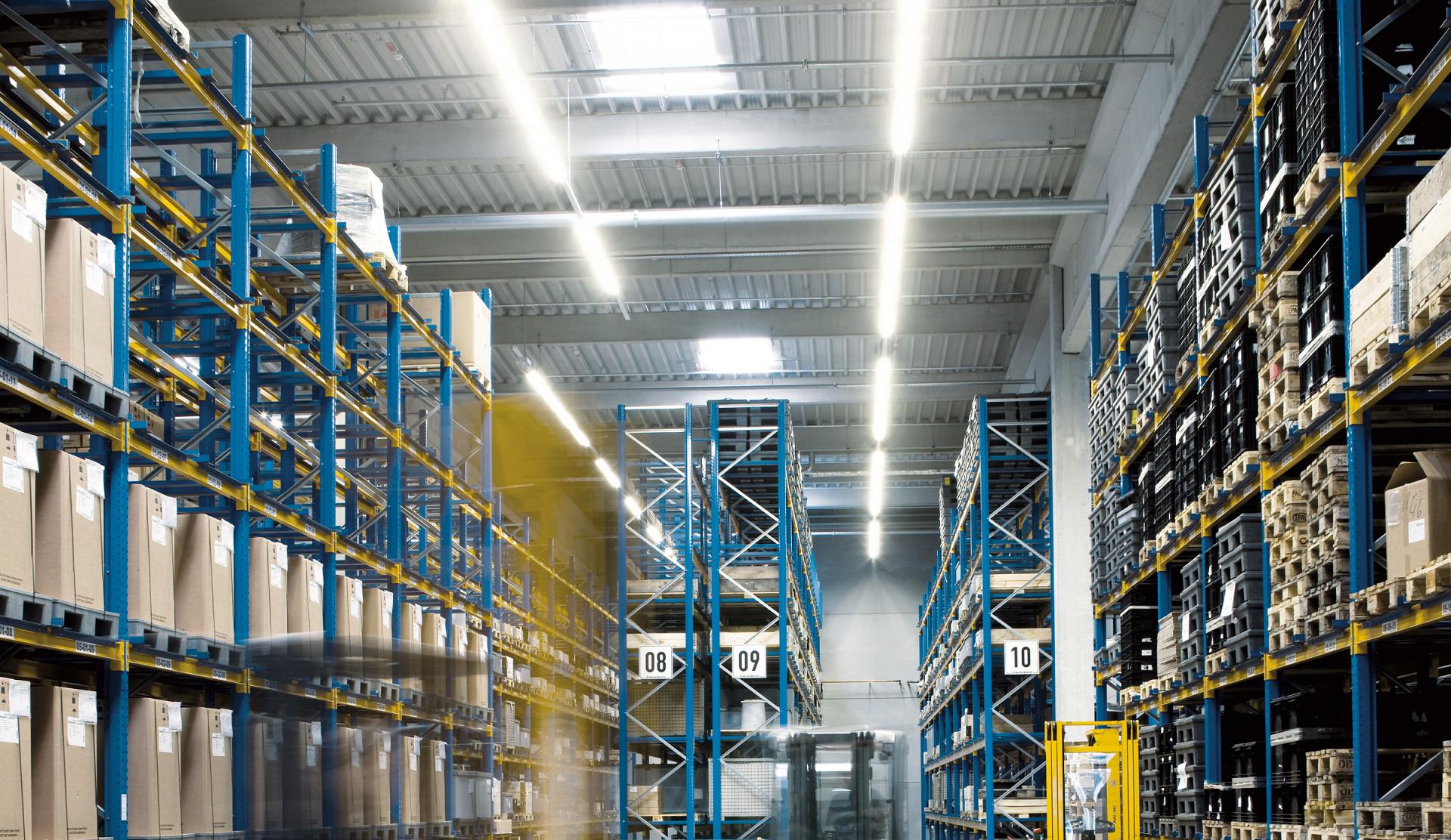

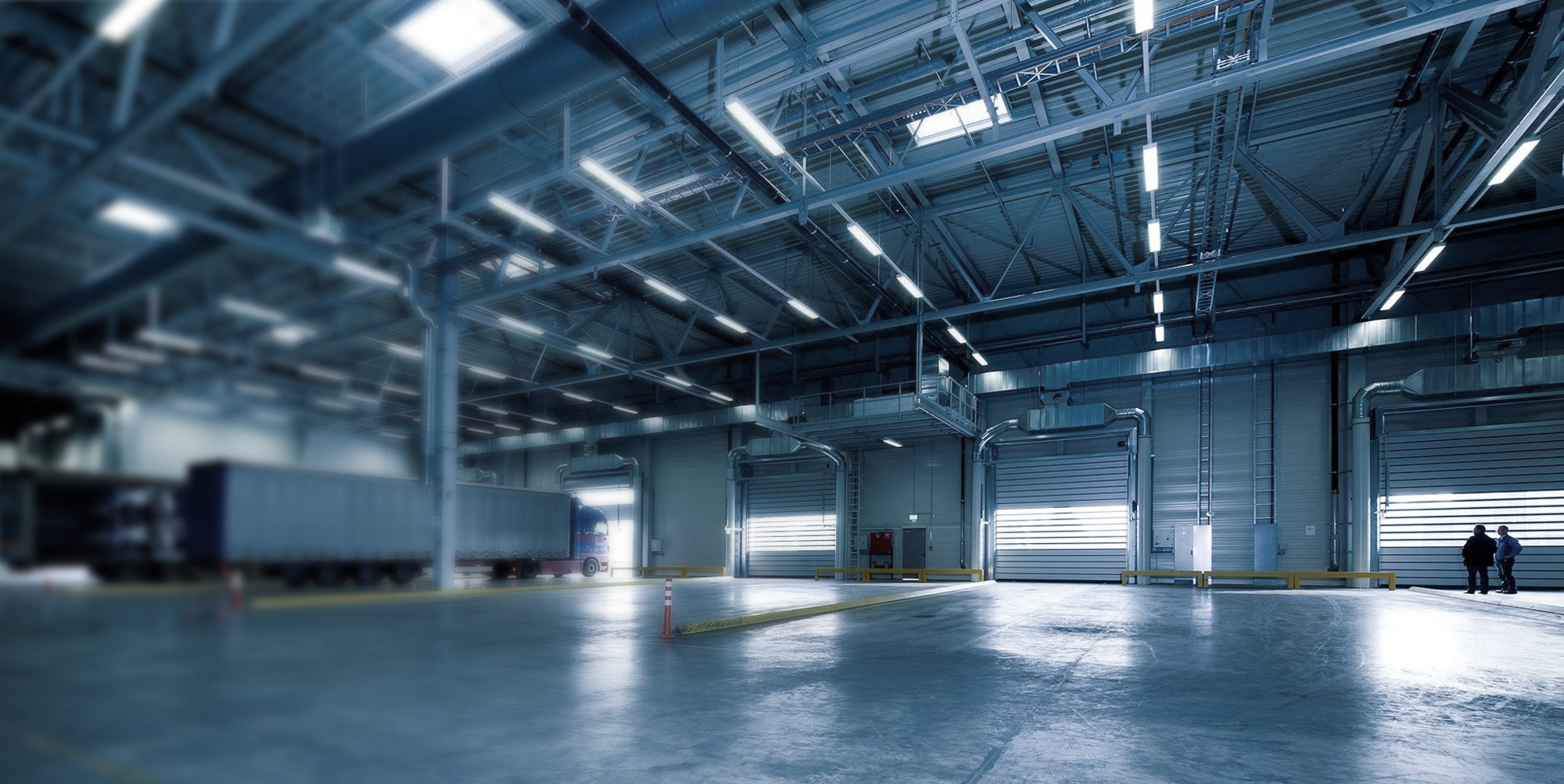

    Supermarkets, warehouses, distribution/logistics centers, chain shops, stadiums, factories, highway statation and parking lot.
