◆ Patented Plug&Play sensor
◆ 0-10V dimming and microwave induction
◆ Flexible combination of 2-4 modules is applicable to all type of application site
◆ Various installation ways: suspended, ceiling and pole installation
Parameters
| Model | Power ±5% | Voltage Frequency | CCT | Lumens ±10% | LEDs type | Beam Angle |
| VALHBL100W-L2 | 100W | AC100-277V 50/60Hz | 2700- 6500K | 14000lm | SMD 2835 Ra＞80 | 70°x100°/ 105° |
| VALHBL160W-L2 | 160W | 22400lm | ||||
| VALHBL200W-L2 | 200W | 28000lm | ||||
| VALHBL240W-L2 | 240W | 33600lm | ||||
| VALHBL300W-L2 | 300W | 42000lm |
Unique Points
◆ Patented Plug&Play sensor
◆ 0-10V dimming and microwave induction
◆ Flexible combination of 2-4 modules is applicable to all type of application site
◆ Various installation ways: suspended, ceiling and pole installation
Product Features
1. Compatible with patented Plug & Play sensor
2. High light efficacy design up to 145LPW, also 160LPW optional
3. Ultra-slim design for easier installation & volume economical to make each unit competitive
4. Optional lenses include 70*100°and 105°, suitable for different application areas
5. Tool-free for lens installation/replacement
6. Suspension installation, Pole installation, Surface mounting installation optional
7. 5 years warranty

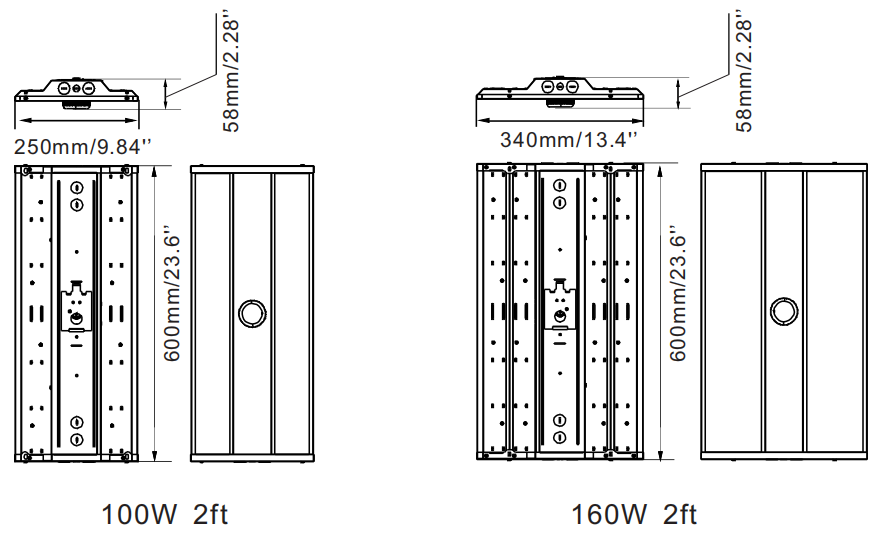

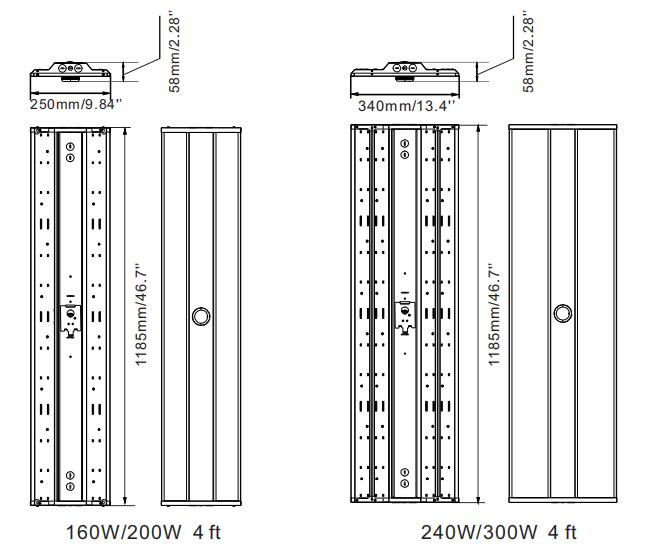

Mechanical Dimension (Unit: mm)

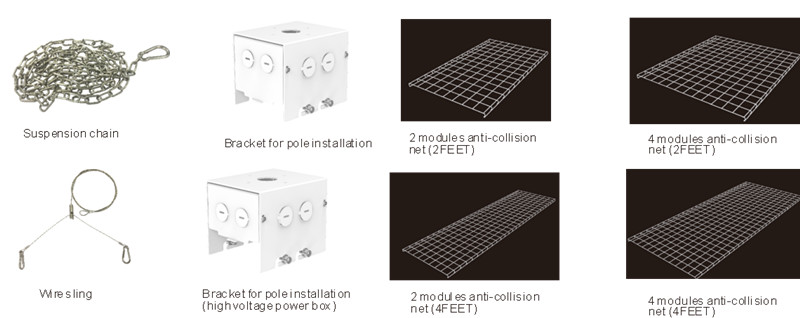

Accessories for Installations
Installation Instruction
Warning:
Switch off the power supply before the installation and let the electrician or the person who has the same ability to install the light.

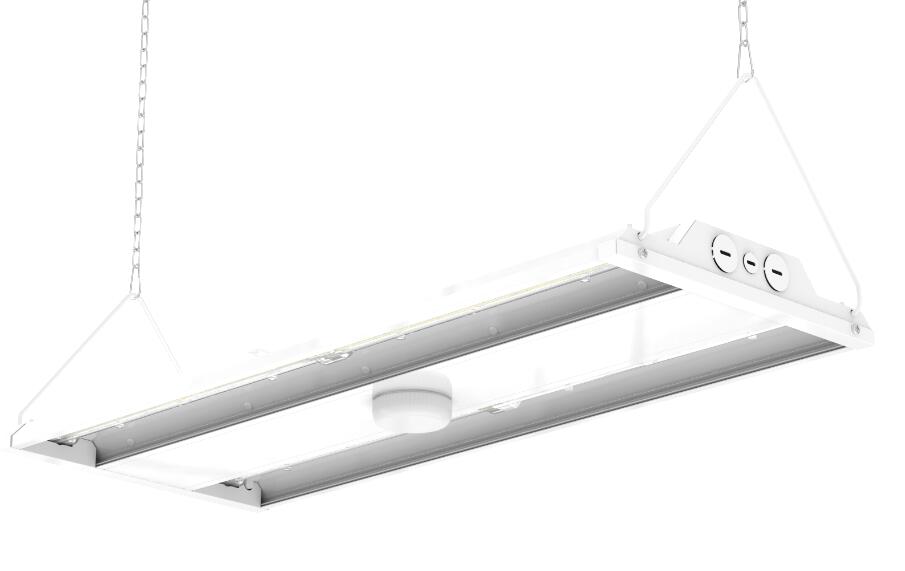

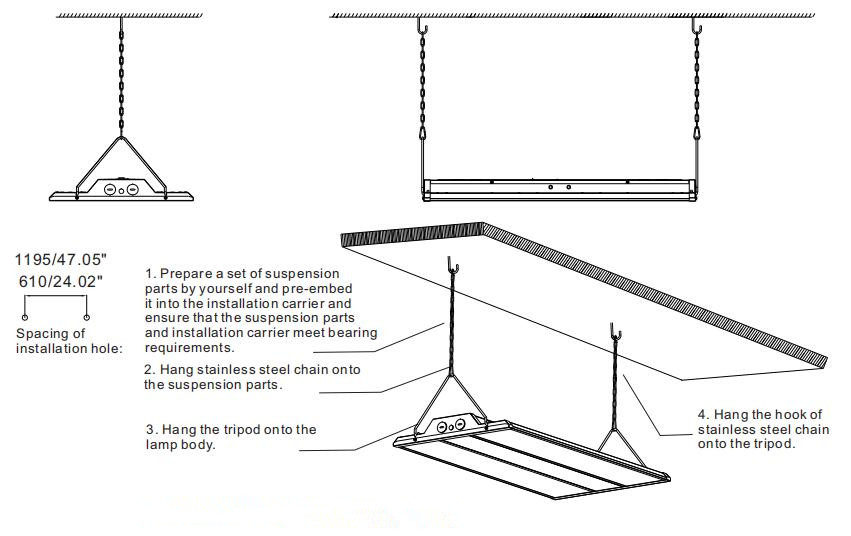

1. Suspended Installation

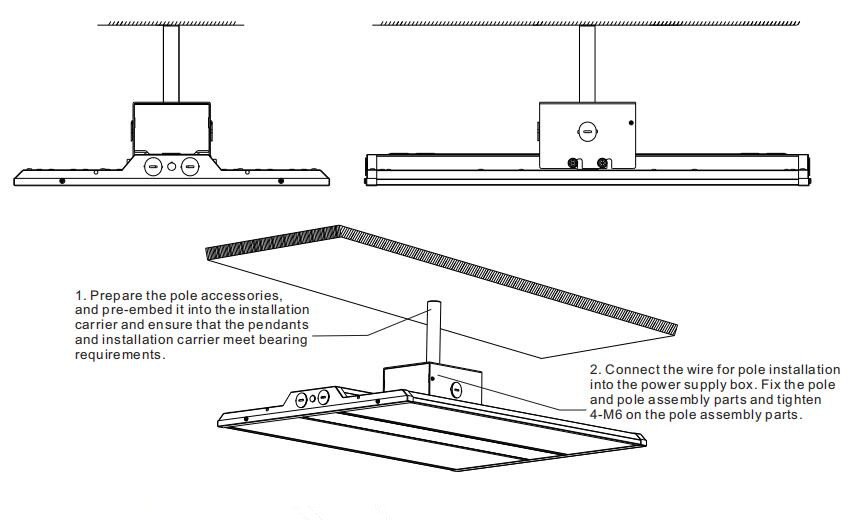

2. Pole Installation
Optional Functions

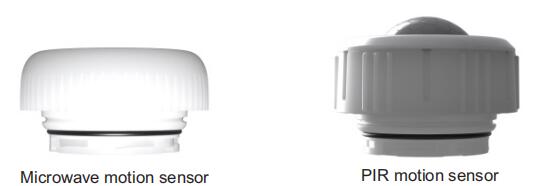

1. Plug and Play Sensor
2. Remote Controller

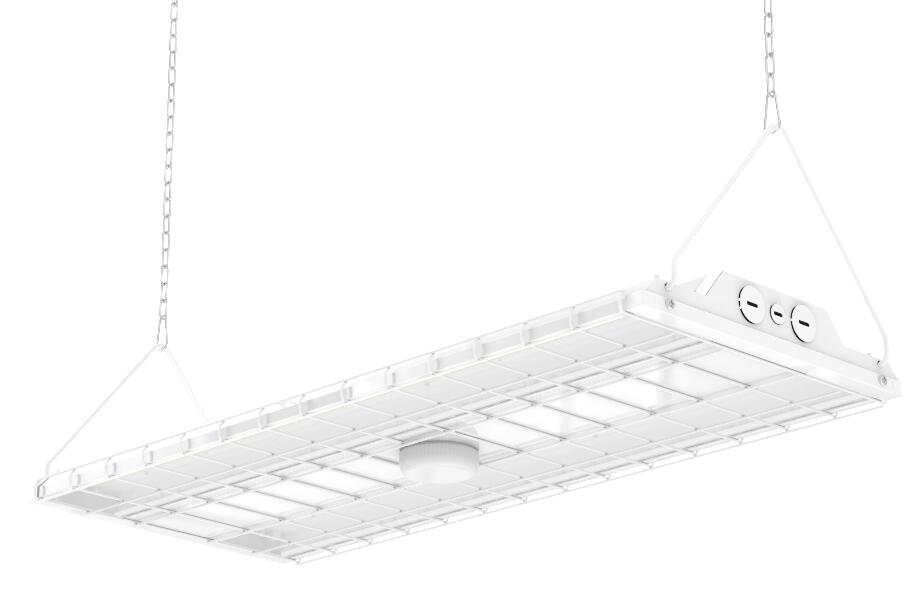

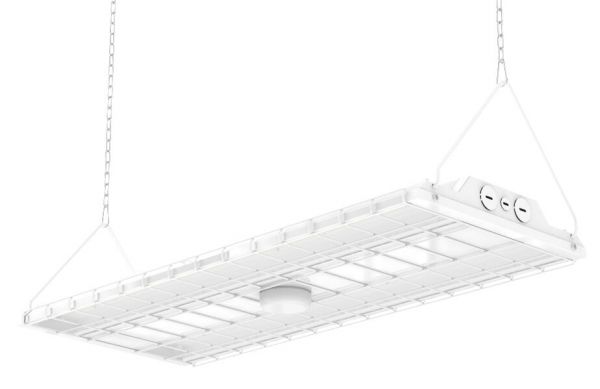

3. Wire Guard
Applications
Supermarkets, warehouses, distribution/logistics centers, chain shops, stadiums, factories, highway statation and parking lot.
