◆ Professional lighting distribution with various beam angle options
◆ With spill shield can reduce light pollution efficiently
◆ Modular design housing, the light source module can be install/uninstall easily
◆ Installation angle can be adjusted precise to different demands
Parameters
| Model | Power ±5% | Voltage Frequency | CCT | Lumens ±10% | LEDs type | Beam Angle |
| VAHML250W | 250W | AC100-277V 50/60Hz | 2700- 6500K | 35000lm | Lumileds 3030 Ra＞80 | 10°/ 25°/ 45°/ 60° / 90° |
| VAHML500W | 500W | 70000lm | ||||
| VAHML750W | 750W | 105000lm | ||||
| VAHML1000W | 1000W | 140000lm | ||||
| VAHML1250W | 1250W | 175000lm |
Product Features
1. Professional lighting distribution with various beam angle options
2. With spill shield can reduce light pollution efficiently
3. Modular design housing, the light source module can be install/uninstall easily
4. Installation angle can be adjusted precise to different demands
5. Adopt Lumileds 3030LED and Meanwell driver to ensure the excellent performance of the lamp
6. CRI>80, good color rendering performance
7. Can operate in -35ºC~+45ºC environment
8. Offer IES , 5 years warranty
Highlighted Features
More Beam Angle for Option
Professional stadium light design concept, with 10° / 25° / 45° / 60° / 90° / 130°x30°- 60° a variety of lighting angles, to meet the needs of different occasions.
Assemble and disassemble operation
Mechanical Dimension (Unit: mm)
VAHML250W VAHML500W
VAHML750W VAHML1000W
VAHML1250W

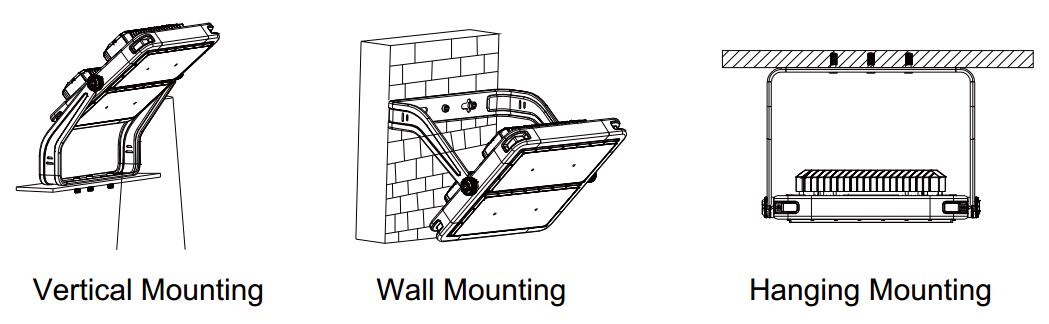

Installations

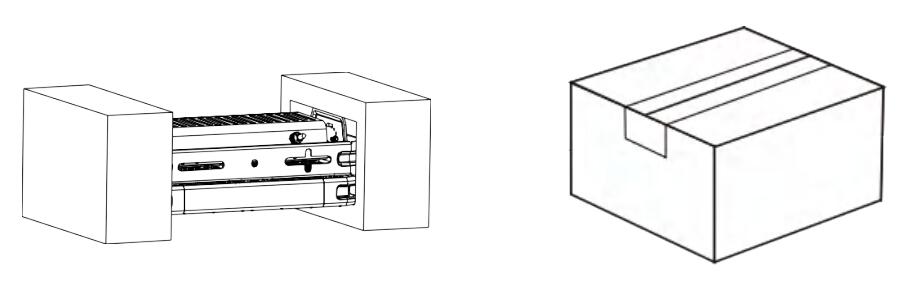

Package

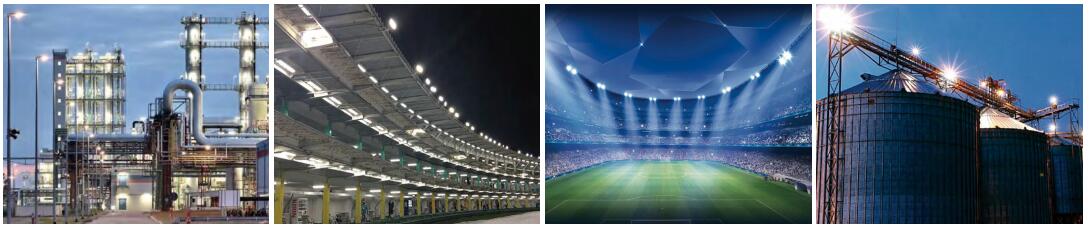

Application
Stadium, Wharf, Airport, Dock, Tower Crane, Large Outdoor Parking Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.
