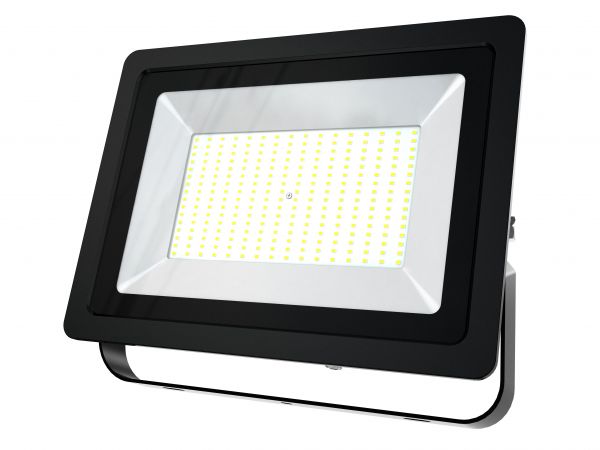

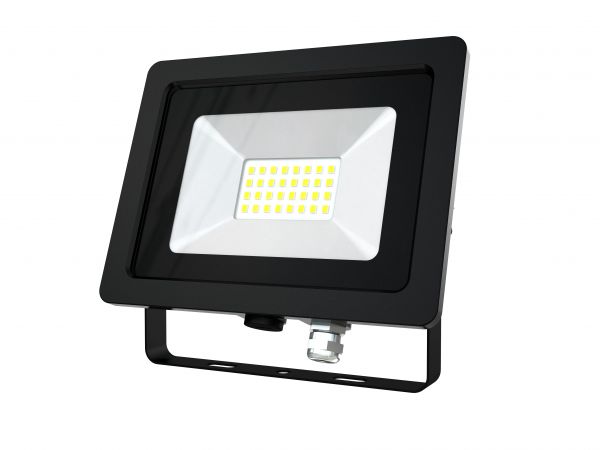

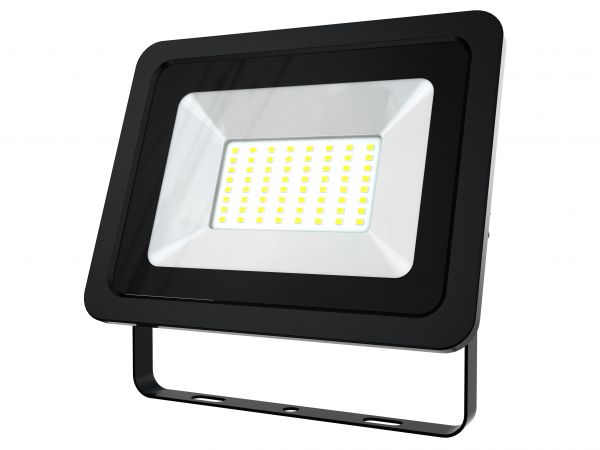

◆ Die casting aluminum alloy lamp body
◆ Constant power driving and portable
◆ Power factor is > 0.9
◆ Protection against electric shock: Category I
◆ Corrosion-proof grade: W
Parameters
Model | Power ±5% | Voltage Frequency | CCT | Lumens ±10% | LEDs type | Beam Angle |
VAFL10W-ECO | 10W | AC220-240V 50/60Hz | 2700- 6500K | 900lm | SMD2835 Ra>80 | 120° |
VAFL20W-ECO | 20W | 1900lm | ||||
VAFL30W-ECO | 30W | 2800lm | ||||
VAFL50W-ECO | 50W | 4700lm | ||||
VAFL100W-ECO | 100W | 9200lm | ||||
VAFL150W-ECO | 150W | 13000lm |
Unique Points
◆ Die casting aluminum alloy lamp body
◆ Constant power driving and portable
◆ The reflector with tempered glass shape is efficient and energy saving
◆ Power factor is > 0.9
◆ Protection against electric shock: Category I
◆ Corrosion-proof grade: W
Product Features

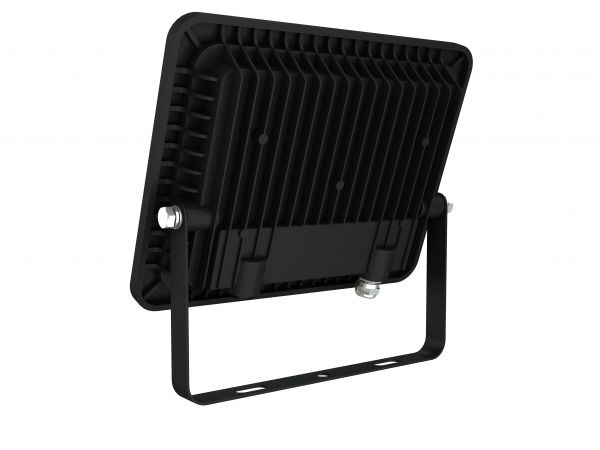

1. The die casting aluminum alloy lamp body features good heat dissipation, firm and durable;
2. The reflector with tempered glass shape is efficient and energy saving;
3. With sealing with glue, the protection grade is I P65;
4. Constant power driving and portable;
5. Adopt efficient 2835 light source;
6. The power factor is ≥0. 9;
7. Multiple LED are distributed evenly for light distribution to avoid light spot;
8. Applicable environment: -35℃~+ 40℃;
9. In conformity with RoHS and CE standard;
10. Protection against electric shock: Category I ;
11. Corrosion-proof grade: W.

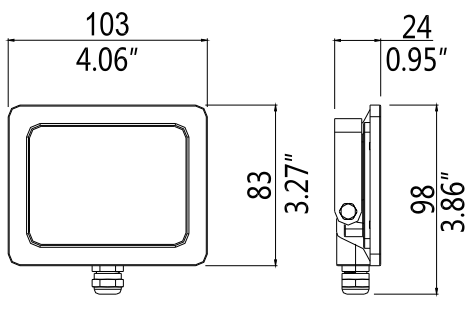

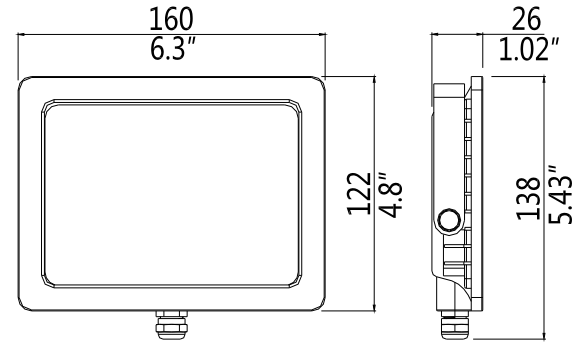

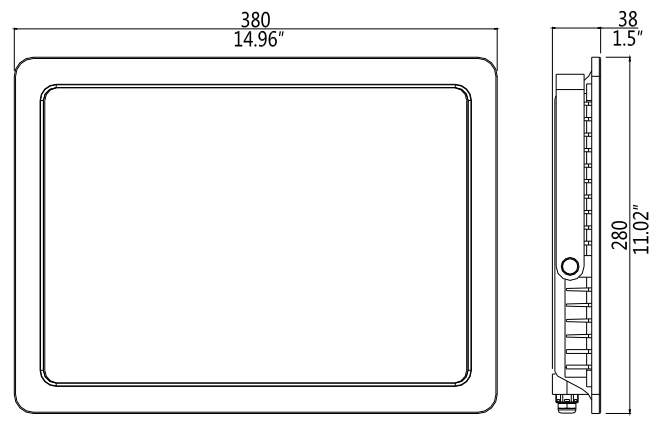

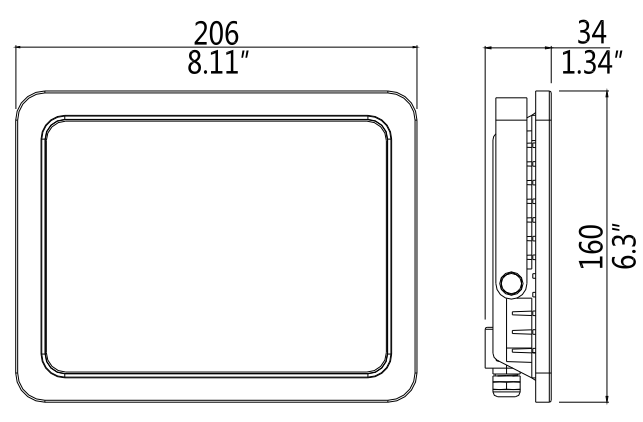

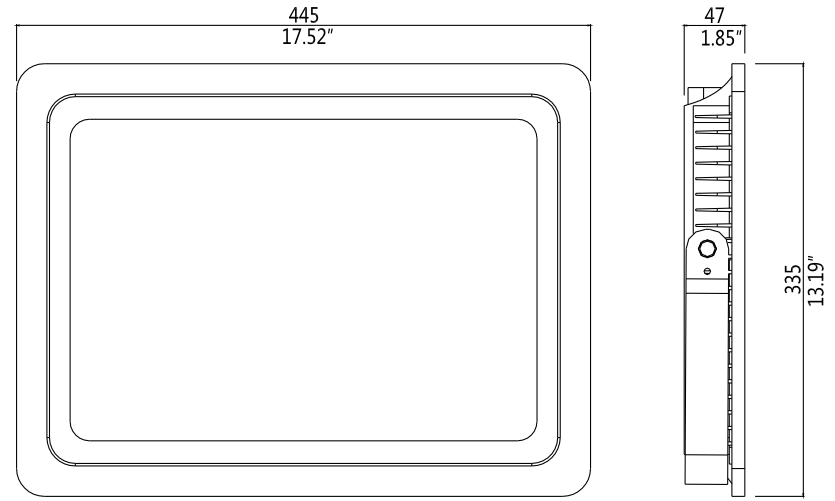

Mechanical Dimension (Unit: mm)
VAFL10W-ECO VAFL20W-ECO
VAFL30W-ECO VAFL50W-ECO
VAFL100W-C VAFL150W-C

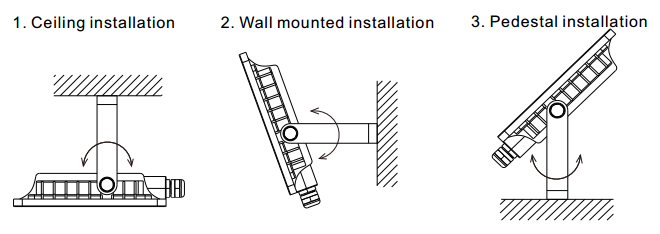

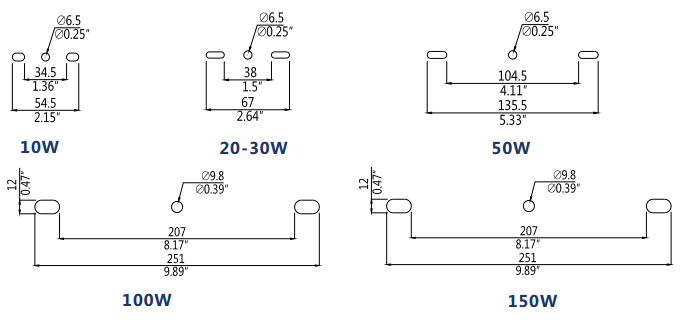

Installation Way
Step 1 : Drill two holes on installation surface, and install M6/M8/M10 expansion bolt;
Step 2: install lamp on expansion bolts and adjust the lighting angle;

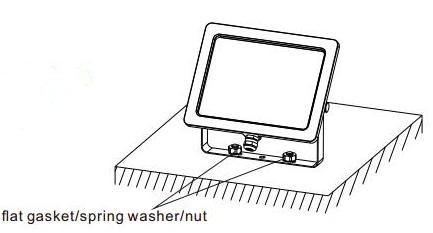

Step 3: install flat gasket, spring washer and nut; fasten bracket with expansion bolts.

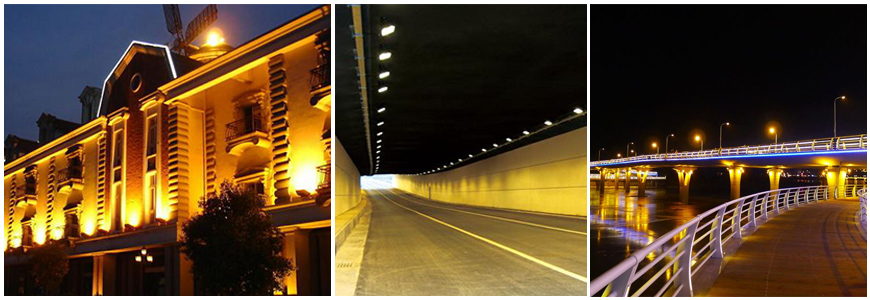

Applications
Widely used in gardens, buildings, advertisements, industrial lighting and other relevant sites including lighting in parks, squares, yard decoration lighting, the lighting sites of advertisements in department stores, underground passages, building external walls, wharf and ports, construction sites, etc
